Popis produktu

Volnoběžné otáčky (min-1): 0 - 3700
Pilový kotouč - průměr (mm): 305
Pilový kotouč - průměr vrtání (mm): 30
Rukojeť: ano
Funkce tahu: ano
Funkce náklonu: ano
Výkon (Watt): 1600
Napětí (V): 220 - 240
Typ: Kapovací a pokosová pila
Způsob provozu: Síť
Šířka (cm): 78,0
Výška (cm): 65,7
Hloubka (cm): 50.0
Hmotnost (kg): 18,6

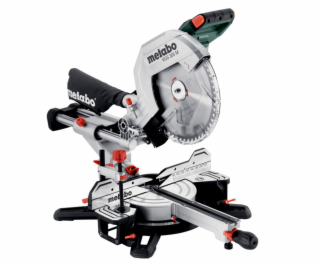

Metabo KGS305M Sliding Mitre Saw, corded

Features:


Large mitre and crosscut saw of the mobile M-class
Precision Cut Line (PCL): exact shadow cut line without readjustment by ideally placed LED
High cutting performance
Powerful universal motor
Turntable with fast, precise adjustment of common angles via detents
Saw blade tiltable on both sides up to 47 degrees
Aluminium die-cast housing
Sturdy construction for tough applications
Effective dust extraction via integrated dust collection funnel
Soft start
Quick-release clamp
Depth stop
Ergonomic handle
Easy-to-read scales and visible controls


Scope of delivery:


1x Metabo KGS305M sliding mitre saw
1x saw blade Precision cut wood - classic 305x30 Z56
Two integrated table extensions
1x crosscut fence
1x material clamp
1x tool for saw blade change
1x cable winding
1x dust collection bag


Technical data:


Dimensions: 780 x 500 x 657 mm
Support surface: 345 x 770 mm
Max. cutting width 90°/45°: 305 / 215 mm
Max. cutting depth 90°/45°: 110 / 67 mm
Cutting capacity 90°/90°: 305 x 110 mm
Cutting capacity 45°/45°: 215 x 67 mm
Turntable adjustment left / right: 50 / 60 °
Saw blade inclination left / right: 47 / 47 °
Saw blade: 305 x 30 mm
Rated input power: 1600 W
Rated input power S1 100%: 1600 W
Rated input power S6 20%: 2000 W
No-load speed: 3700 /min
Speed at rated load: 3000 /min
Cutting speed: 59 m/s
Weight: 18.6 kg
Cable length: 2 m
Sound pressure level: 87 dB(A)
Sound power level (LwA): 100 dB(A)
Measurement uncertainty K: 3 dB(A)

---
