Popis produktu

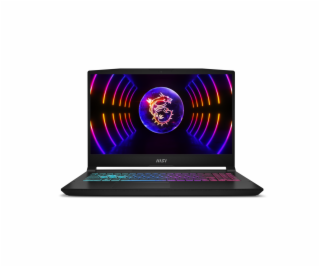

MSI Katana 15 B13VGK-1867CZ/i7-13620H/16GB/1TB SSD/RTX 4070, 8GB/15,6 FHD 144Hz IPS/Win11 Home/černá

MKT Spec Katana 15 B13VGK-1867CZ
System/Barebone System
Chassis Color
Color ID7(BB)/Black-Black-Black-Black
Color_Website Black
Chassis Material
A Side Plastic
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 15.6
Resolution IPS-Level FHD
Pixel 1920x1080
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 144Hz
Response Time Tr+Tf 25ms
Color Range 45%
Screen Size_Website 15.6
Pixel_Website FHD(1920x1080)
Frame Rate_Website 144Hz Refresh Rate
Color Range_Website N/A
Display Type_Website IPS-Level
HDR Value N/A
Touch Feature_Website NA
CPU
CPU Type 10 CORE
CPU Core Name RAPTOR LAKE
CPU Socket FCBGA-1744pin
CPU Number i7-13620H
CPU Clock 2.4GHz
CPU Cores 10
CPU Core Name_Website 13th Gen Intel® Core™
CPU Number_Website i7-13620H processor
CPU Specification_Website 10 cores (6 P-cores + 4 E-cores), Max Turbo Frequency 4.9 GHz
Chipset
Chipsets N/A
Chipset SoC_Website Integrated SoC
Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 4070
GPU1 Number RTX 4070
GPU1 MKT Name_Website NVIDIA® GeForce RTX™ 4070 Laptop GPU
GPU1 Boost Clock_Website Up to 1980MHz Boost Clock 105W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website N/A
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website N/A
Cooling
Thermal Cooler Boost 5
Fan 2
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR6
Integrated Graphics
GPU1 Graphics_Website Intel® UHD Graphics
Memory
Memory Size 8GB*2
Memory Type DDR5-5200
Memory Speed 2800(5600)MHz
Memory Remark_Website N/A
Memory Slot and Max Capacity
Memory Slot 2 Slots
Memory Max Capacity_Website Max 64GB
Storage
SSD Interface PCIe GEN4x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-Key
SSD Size 1TB*1
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD size N/A
HDD1 RPM N/A
ODD Type N/A
Multi Bay N/A
SSD Gen_Website NVMe SSD PCIe Gen4
2.5 HDD_Website N/A
SSD Remark Please consult service center for upgrading SSD.
Storage Slot
SSD (NVMe PCIe Gen)_Website 2x M.2 SSD slot (NVMe PCIe Gen4)
HDD_Website NA
Communications
Accessory Lan_Website Gb LAN
LAN
LAN_Website Gigabit Ethernet
LAN REALTEK/RTL8111H-VB-CG
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT INTEL/AX211.NGWG.NV
I/O Ports
Audio Line In N/A
Audio Line Out N/A
Digital out SPDIF N/A
RJ45 1x
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) N/A
Type-C (USB / DP / Thunderbolt™ 4) with PD charging N/A
Type-C (USB / DP / Thunderbolt™ 4) with PD3.1 charging N/A
Type-C (USB / DP / Thunderbolt™ 4) N/A
Type-C (USB / DP / Thunderbolt™) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) with PD3.1 charging N/A
Type-C (USB3.1 Gen1 / DP) NA
Type-C (USB3.2 Gen1 / DP) 1x
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 N/A
Type-A USB3.2 Gen1 2x
Type-A USB3.1 Gen1/ QC3.0 N/A
Type-A USB3.2 Gen1/ QC3.0 N/A
Type-A USB3.1 Gen2 N/A
Type-A USB3.2 Gen2 N/A
Type-C USB3.2 Gen2x2 N/A
Type-A USB3.1 N/A
Type-C USB3.0 N/A
Type-A USB3.0 N/A
Type-A USB2.0 1x
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader N/A
Smart Card Reader N/A
Video Ports
VGA Out N/A
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port N/A
Keyboard
Keyboard Types_Website 4-Zone RGB Gaming Keyboard
Keyboard Keys 99KEYS
Keyboard Backlit Y
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad NA
WebCam
WebCam HD type (30fps@720p)
Webcam Feature N/A
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic N/A
Audio Solution_Website Nahimic 3 Audio Enhancer, Hi-Res Audio Ready
AC Adapter
Adaptor Output 200W adapter
Adaptor 200W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 630
Power Cord Unit Weight (g) 126
Battery
Battery Type 3CELLS/3S1P
Battery Cell_Website 3-Cell
Whrs 53.5 Whrs
Battery Unit Weight (g) 211
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME PLUS OLC OA3)
OS Type W11MH
OS_Website Windows 11 Home (MSI recommends Windows 11 Pro for business.)
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 359 x 259 x 24.9 mm
Dimension(Inches)_Website 14.13 x 10.2 x 0.98
Weight (W/ Battery)
Weight 2.25 kg
Weight(lbs)_Website 4.96 lbs
Weight (Docking) N/A
Weight (lbs Docking)_Website N/A
Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0
Certification
Certification Type_Website Meta Ready
Sustainability
EPEAT_Website
Sensor
Fingerprint_Website N/A
Fingerprint (Optional) N/A
Ambient Light Sensor_Website N/A
Gyroscope_Website N/A
Accelerometer_Website N/A
Magnetometer_Website N/A
Proximity Sensor N/A
NFC (Optional) N/A
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Accessory
Accessory_Website
Extra Bag N/A
Extra Mouse N/A
Remark
I/O Ports Remark N/A
Remark 1_Website
Remark 2_Website
Remark 3_Website
Remark 4_Website
Remark 5_Website
Software
Software Nvidia GeForce Experience, Nahimic 3, Gaming Mode, MSI App Player, Mystic Light, Game Highlights, MSI Companion, Crosshair, Battery Master, MSI Center, Animaze, Ambient Silent AI, Smart Auto
Model Info
Series Name Gaming
Segment Name GF
Segment Name2 Katana15B
Segment Name3 Katana15 B13VGK
Barcode Info
EAN 4711377185165

---
