Popis produktu

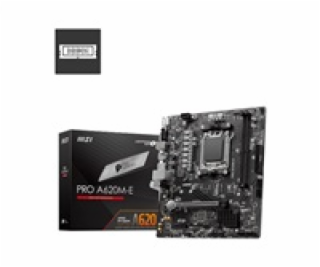

MSI PRO A620M-E Supports AMD Ryzen™ 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC) Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength CPU Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 Chipset AMD A620 Memory 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO Graphics 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Expansion Slots 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Ethernet Realtek RTL8111H Gigabit LAN USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports Back Panel I/O Ports 1x HDMI™ 1x VGA 2x Keyboard/Mouse 4x USB 3.2 Gen 1 5Gbps (Type-A) 1x LAN port 3x Audio connectors 2x USB 2.0
LED FEATURE 4x EZ Debug LED Operating System Support for Windows 11 64-bit, Windows 10 64-bit Form Factor mATX 211mmx243.84mm

---
