Popis produktu

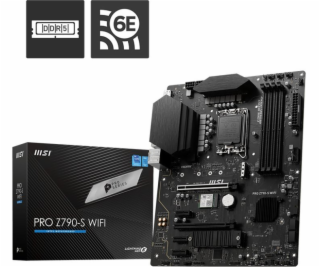

MSI PRO Z790-S WIFI PRO Z790-S WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. CHIPSET INTEL Z790 CPU Supports 12th/13th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors LGA 1700 MEMORY 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory ONBOARD GRAPHICS 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 2x PCI-E x16 slot 3x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) STORAGE 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Realtek RTL8125BG 2.5Gbps LAN WIRELESS / BLUETOOTH Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. AUDIO Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports BACK PANEL PORTS 1x DisplayPort 1x HDMI™ 2x USB 2.0 1x USB 3.2 Gen 2x2 20Gbps (Type-C) 1x 2.5G LAN 5x Audio Connectors 2x USB 3.2 Gen 1 5Gbps (Type-A) 2x USB 3.2 Gen 1 5Gbps (Type-A) 1x S/PDIF-OUT OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit Form Factor ATX 243.84 x 304.8 mm Co je v krabici 2x M.2 Screw 2x SATA Cable WiFi Antenna WiFi Bracket I/O Shield

---

Našli ste v tomto popise chybu? Prosím kontakujte nás na email: info@mader.sk
Rada výrobcov si vyhradzuje právo na zmenu niektorých parametrov, či vlastností bez predchadzajúceho upozornenia.
