Popis produktu

Náhradní díl ELO kabel USB, určeno k IT řadiči (2218)

AccuTouch 2218 Series Controller Specifications
May 16, 2022
See below for specifications of the AccuTouch 2218 Series Controller.


Overview

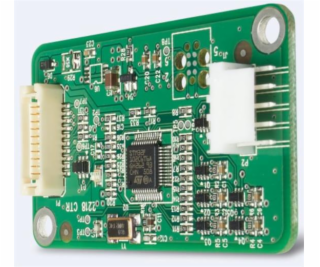

The Elo Touch Solutions 2218 series controller is designed to work
specifically with AccuTouch resistive touchscreens. Building technology
with coordinating components enables a much smoother design and user
experience.



Works two ways
The 2218 combo controller works through a serial interface or via USB.
It is a full-speed, self-powered, USB device when USB is used. The
controller comes in both a standard friction-lock touchscreen
connector and one with a positive latching touchscreen connector.



Fully Optimized
Elo’s 2218 controller was designed and manufactured to work
specifically with AccuTouch resistive screens for optimal performance
in an efficient, costs-effective solution. The 2218 uses Elo s COACh® V
controller chip which is also available separately.

  Specifications
• Part Number(s)
o E329179
• Technology
o 5-Wire Resistive (AccuTouch®)
• Number of Touches
o Single Touch
• Input Methods
o Finger Gloved hand Passive stylus
• Dimensions
o 60mm x 35mm x 8mm
• Surface Treatment
o Clear
• Input Voltage
o 5V +/- 10%
• Report Rate
o 10ms
• Baud Rate
o For RS232: 9600 (default) and 19200
• Current - Operating Mode
o 25mA Typical
• Operating Temperature
o -40°C to 85°C
• Storage Temperature
o -65°C to 125°C
• Humidity
o 10% to 90% RH, (Non Condensing)
• Warranty
o 2-year
• Controller Cables
o Serial cable: P/N D16890-000
o USB cable: P/N D38640-000
o Dual serial/USB cable: P/N D40022-000

---
