Popis produktu

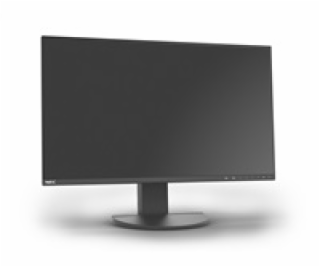

24 LCD monitor with LED backlight, 1920x1080, USB-C, DisplayPort, HDMI, USB 3.1, 150 mm height adjustable
Product Information
Product Name MultiSync EA242F
Product Group LCD 23.8 Enterprise Display
Order Code 60005246 (WH), 60005032 (BK)
Display
Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 24 / 60.47
Screen Aspect Ratio 16:9
Colour Gamuts 101.6 % sRGB; 75.3% AdobeRGB, 72% NTSC
Pixel Pitch [mm] 0.275
Brightness (typ.) [cd/m2] 250
Contrast Ratio (typ.) 1000:1 (5000:1 dynamic contrast ratio)
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 5 (grey-to-grey)
Colours [Mio.] 16.78 (6-bit per colour)
Synchronisation Rate
Horizontal Frequency [kHz] 31.5 - 83
Vertical Frequency [Hz] 50 - 75
Resolution
Optimum Resolution 1920 x 1080 at 60 Hz
Supported 1920 x 1080;
1680 x 1050;
1440 x 900;
1280 x 1024;
1280 x 960;
1280 x 720;
1024 x 768;
800 x 600;
720 x 576;
720 x 480;
720 x 400;
640 x 480
Connectivity
Digital 1 x DisplayPort; 1 x DisplayPort out; 1 x HDMI; 1 x USB Type C; USB ver. 3.1 (3 down / 1 up)
Analog 1 x D-sub 15 pin
Electrical
Power Consumption on Mode
[W]
15 (Eco Mode 2); 21 (typ.)
Power Savings Mode [W] 0.3
Power Supply 0.9 A/0.5 A; 100-240 V; internal power supply
Environmental Conditions
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 85
Storage Temperature [°C] -10 to 60
Ergonomics
Height adjustable stand [mm] 150 (Landscape mode)
Screen Tilt [°] -5 to 35
Screen Swivel [°] -170 to 170
Screen Rotate [°] 0 to 90 (landscape to portrait mode)
LCD 23.8 Enterprise Display - MultiSync EA242F (2 / 3)
Mechanical
Bezel Width [mm] 0.8 (left/right/top); 15.8 (bottom)
Dimensions (W x H x D) [mm] 319.1 x 555.6 - 615.4 x 250 (Portrait mode); 537.7 x 336.6 - 486.6 x 250 (Landscape mode)
Weight [kg] With stand: 7
VESA Mounting [mm] 100 x 100 (4 points)
Additional Features
Colour Versions Black Front Bezel, Black Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play DDC2B/2Bi; VESA DDC/CI; VESA DDC2Bi
Audio Integrated Speakers (1 W + 1 W)
Adjust Functions Advanced NTAA (Advanced Non-Touch-Auto-Adjustment)
Shipping Content Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; USB Cable; USBC Cable
Safety and Ergonomics CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); PSB; RoHS; TCO
8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE
Warranty 3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to
5th year warranty extension
Green Features
Energy Efficiency Ambient light sensor; Energy efficiency class: A+; Human sensor
Ecological Standards ErP compliant; RoHS compliant; WEEE

---
