Popis produktu

Tento produkt je možný konfigurovat pomocí jednoduché utility.

Use as a plug-and-play switch or use the Configuration Utility for simple setup.
Support network monitoring, traffic prioritization and virtual network groups.
Green Ethernet for reduced power consumption.

Features
* Use as a plug-and-play switch or use the configuration utility for simple setup
*5 ports deliver up to 2000 Mbps bi-directional bandwidth on each port
* Quality of Service (QoS) for prioritizing network traffic
* Virtual LAN (VLAN) support for network segmentation and security
* Troubleshoot connection problems via cable test
* Port mirroring
* Bandwidth management to avoid network congestions
* Network traffic monitoring
* Broadcast storm control

NETGEAR Green
Up to 60% lower power consumption
Auto power-down mode saves energy when port is not connected
Less transmit power when the cable is short (under 10m)
Packaging manufactured with at least 80% recycled material

Specifikace
Network Ports
Five (5) 10/100/1000 Mbps Ethernet RJ-45 ports

Power Adapter
12V, 1.0A power adapter, localized to country of sale
Power consumption: 4W

Physical Specifications
Dimensions (w x d x h): 94 x 104 x 28 mm (3.7 x 4.1 x 1.1 in)
Weight: 0.3 kg (0.66 lb)

Switch Environmental Specifications
Operating temperature: 32o to 122o F (0o to 50o C)
Operating humidity: 90% maximum relative humidity, non-condensing
Acoustic noise level: 0
Mean time between failures (MTBF): 5,905,968 hours (~ 674 years)

Status LEDs
Power
Link, speed, and activity indicators built into each RJ-45 port

Performance
MAC address: 4K
Bandwidth: 10 Gbps

Standards Compliance
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3x full-duplex flow control
Honors IEEE 802.1p priority tags
Honors IEEE 802.1Q VLAN tags
Compatible with all major network software

Safety Agency Approvals
UL listed (UL 1950)/CUL, CB

Electromagnetic Compliance
CE mark (commercial), FCC Part 15 Class B, EN 55022 (CISPR 22)Class B, VCCI Class B, C-Tick

Warranty
NETGEAR Lifetime Warranty††

ProSupport Service Packs Available

OnCall 24x7, Category 1
PMB0331-100 (US)
PMB0331 (non-US)

XPressHW, Category 1
PRR0331

Package Contents

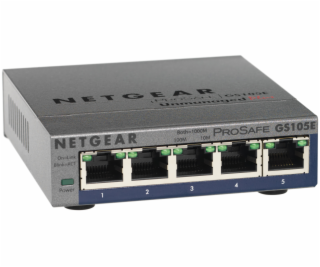

ProSafe 5-port or 8-port Gigabit Ethernet Switch (GS105E)
Wall-mount kit
12V, 1.0A power adapter
Quick installation guide
Installation CD with configuration utility software

NETGEAR Related Products
ProSafe 16-port Fast Ethernet Switch (FS116E)
ProSafe 24-port Fast Ethernet Switch (JFS524E)

Ordering Information
North America: GS105E-100NAS
Europe - General: GS105E-100PES
UK: GS105E-100UKS
Asia: GS105E-100AUS

This product comes with a limited warranty, the acceptance of which is a condition of sale. This product has been tested for quality assurance and this product or its components may have been recycled.

---
