Popis produktu

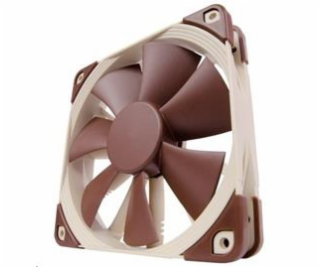

Špičkový ventilátor nové generace NF-F12 PWM. Je vybaven druhou generací osvědčených SSO ložisek a novou PWM IC technologií Smooth Commutation Drive (SCD) pro plně automatické řízení rychlosti otáček, tichý chod a malou spotřebu.

12 cm Fan PWN Fan optimized air pressure (cooler and water-radiator)
Noctua’s custom-designed NE-FD1 is a next-generation PWM fan driver IC that integrates Smooth Commutation Drive (SCD) technology for quieter operation and allows for ultra-low power consumption. Its superb linearity and security features such as locked rotor or reverse voltage protection make it an ideal driver IC for premium-class PWM fans. NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearings and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.

Size 120x120x25 mm
Connector 4-pin PWM
Bearing SSO2
Blade Geometry Heptaperf™
Frame Technology Focused Flow™
Rotational Speed (+/- 10%) 1500 RPM
Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM) 300 RPM
Airflow 93,4 m3/h
Airflow with L.N.A. 74,3 m3/h
Acoustical Noise 22,4 dB(A)
Acoustical Noise with L.N.A. 18,6 dB(A)
Static Pressure 2,61 mm H2O
Static Pressure with L.N.A. 1,83 mm H2O
Max. Input Power 0,6 W
Max. Input Current 0,05 A
Voltage 12 V
MTBF > 150.000 h
Scope of Delivery Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Warranty 6 years

---
