Popis produktu

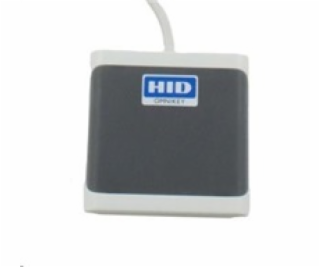

The HID-R50220318-XX is an Omnikey USB Reader from HID. That is 5022 contactless high frequency smart card reader. The OMNIKEY 5022 reader is an ideal solution for healthcare, pharmaceutical, financial services, enterprise, government and other organizations seeking higher security and access management. The reader eliminates the need to install drivers, and can be used with standard PCs and workstations, as well as with thin and zero clients. It can also be used to meet security and regulatory compliance requirements, which mandate two-factor user authentication for accessing workstations and applications. The OMNIKEY 5022 is interoperable with a number of smart card technologies, tags, and NFC-enabled smart devices. By supporting numerous credentials based on common ISO14443 A/B, ISO 15693 standards, the reader is an ideal entry-level choice to support a small footprint in desktop environments. The OMNIKEY 5022 is integrated and tested with HID Global’s ActivID ActivClient, ActivID Applets and HID Global Trusted Tag Services.




Contact Smart Card Interface





Protocols


T=CL, MIFARE, iCLASS ISO 14443A/B - up to 848 kbps (depending on card) ISO 15693 - up to 26 kbps (depending on card) NFC Tag 1-4




Host Interface





USB Interface


USB 2.0 Full Speed Device (12 MBps) USB 3.0 extended operability, tested with hubs/controllers




Connector / Cable


USB Type A connector; 59.1 (150 cm) cable




Operating Systems


Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2 Windows CE (6/7) depending on hardware Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+ Mac OS X; Android 4.0




Driver


CCID native driver from operating system (Windows/Linux/Mac)




Supported APIs


PC/SC - API




Human Interface





Status Indicator


White LED




Housing





Housing


Poly Carbonate Body Light Grey / Cover in different colors available Customer-specific logo or colour on request




Dimensions


2.32 x 2.32 x 0.44 (59 x 59 x 11,4 mm)




Weight


70 g (2.5 oz)




Operating Conditions





Operating Temperature


32-158 F (0-70°C)




Operating Humidity


10-95% rH




Storage Temperature


-4 - 176 F (-40 - 80°C)




Meantime Between Failure (MTBF)


500.000 hours




Compliance Regulatory





Compliance / Certification


USB 2.0




Regional certifications


CE, FCC, UL, KCC, RCM




Environmental


WEEE, RoHS2, Reach




Ordering Information





Warranty


Two-year manufacturer s warranty




Optional


Mounting accessories kit Card Holder for card presence operation Multiple colour options available

---
