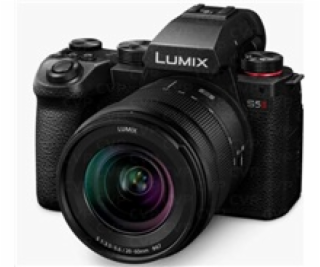

Panasonic Lumix DC-S5 II Body (without lens)

With its outstanding photo and video performance and amazingly compact and robust body, the LUMIX DC-S5 II
robust body, the LUMIX DC-S5 II meets the high demands of creative photo and video enthusiasts.
enthusiasts.

Features:


High image quality thanks to 24.2 MP sensor & innovative processor
96 MP HighRes recording
Image Stabilizer: Dual stabilisation: 5-axis Body I.S. + O.I.S. in lens (when using an O.I.S. lens)
High AF speed: Phase Hybrid AF (779 phase detection points) & continuous shooting up to 30 fps AFS
Professional video recording: up to 4K 60p / 6K 30p (Opengate 3:2; Full sensor readout) / Full HD 1080p
Perfect thermal management - built-in fan for unlimited video recording
Robust design: magnesium housing, cold/dust & splash water protection
Intuitive operation - 8-direction joystick, large OLED viewfinder, free swivel LCD, 2 SD card slots


Technical data:



Image sensor:


Megapixels effective: 24.2 MP CMOS full-frame sensor without low-pass filter with AR Coating / 96 MP HighRes recording (JPEG/RAW).



Image stabiliser:

5-axis body stabiliser, Dual I.S. compatible (6.5 steps)



Recording:

Photo: JPEG (DCF, Exif 2.31), RAW
Video: MOV/MP4: 265/HEVC, H.264
Colour space: sRGB, AdobeRGB, dynamic range 14+ stops (V-Log)
Image size photo: max. 6,000 x 4,000 pixels, HighRes.: 12,000 x 8,000 pixels
Video image size: [6K]: 5952x3968 max. 200 Mbps, [C4K]: 200 Mbps max., [4K]: 3840x2160 200 Mbps, [FHD]: 1920x1080 150 Mbps max.



Autofocus:

AF type: phase hybrid AF / 779 AF points.
Focus modes: AF-S (single), AF-C (continuous), MF (manual), eye/face/human/animal detection
AF modes: tracking / full area AF / zones / zone / 1-area+ / 1-area / pinpoint



Exposure:

Light metering: Intelligent multi-field / Centre-weighted integral / Spot metering
Exposure modes: Program / Aperture / Aperture Priority, Manual Tracking, Creative Video, Slow&Quick, Custom (1, 2,3), Intelligent Auto, Scene Programs, Scene Recognition
ISO: 100 - 51200 (expanded 50 - 204800), DUAL Native ISO (AUTO, LOW, HIGH)
Exposure compensation: ± 5 EV in 1 / 3 EV steps (± 3 EV for video recording)
Exposure bracketing, focus bracketing, aperture bracketing



White balance / colours / LUT:

Automatic, manual white balance, white balance programs
19 image styles / filters
Max. 10 real-time luts storable (Vlog_709, formats: .vlt/.cube), can be set to Fn button, preview via monitor / HDMI



Shutter:

Photo: 1/8,000 - 60 s Bulb (max. 30 min)
electronic shutter: 1/8,000 s - 60 s
Video: 1/16,000 s - 1/25 s
Remote shutter release: With Wi-Fi or wired remote shutter release (optional)



Continuous exposure:

Max. 9 fps (AFC/MF) / 7 fps (AFC and LiveView) / max. 30 fps (AFS/AFC/MF); both in JPEG / RAW (min. 200 B)



Flash:

Hot shoe: external TTL flash (optional), 1st/2nd curtain sync, 7 modes, X-sync times <1/250s, flash exposure compensation ± 3 EV in 1 / 3 EV increments, certain models are wirelessly controllable (no flash included).



Display / Viewfinder:

Monitor: LCD touch screen, 7.6 cm (3.0 ?), 3:2 aspect ratio, 1.84 MP, free tilt and swivel, 100% field of view
Viewfinder: OLED, 3.68 MP, approx. 0.78x KB, 100% field of view, 120 / 60 fps, eye sensor, diopter compensation (-4.0 - +2.0)



Bluetooth / Wi-Fi:

Bluetooth: BT 5.0 BLE
Wi-Fi: 2.4 / 5 GHz,



Connections:

1x USB-C 3.2 Gen2 (10 Gbit/s), Power Delivery.
1x HDMI type-A, playback up to C4K 60p; loop-through up to 4:2:2 10-bit
1x Microphone 3.5 mm
1x headphones 3.5 mm
Remote control 2.5 mm



Integrated microphone / loudspeaker:

Stereo microphone
Mono loudspeaker



Power supply:

Li-Ion battery 7.2V, 2,200mAh / approx. 370 pictures or approx. 1250 pictures in PowerSave LVF mode (with obj. S-R2060)
Approx. 90 min. MP4 video (4K/60p), approx. 130 min. (FHD)



Dimensions, weight, colour:

Dimensions (H x W x D): 102.3 x 134.3 x 90.1 mm
Weight: 740 g
Colour: Black
Housing: Magne frame




Lens features:

The compact ultra-wide-angle zoom is ideal for use in almost any weather thanks to dust. The compact ultra-wide-angle zoom lens is ideal for use in almost any weather thanks to its dust, splash and cold protection.


Ultra wide-angle zoom lens
Focal length: 20 - 60 mm
Aperture: F3.5 - 5.6
Fast and accurate autofocus
Compact and lightweight
Dust, splash & cold resistant
Bayonet: L-mount
Optical construction: 11 elements in 9 groups (2 aspherical lenses, 3 ED lenses, 1 UHR lens)
Aperture type: 9 aperture blades / circular aperture
Minimum focusing distance: 0.15 m (for focal length of 20-26 mm), 0.4 m (for focal length of 60 mm)
Maximum magnification: 0.43x
Recommended operating temperature: -10°C to 40°C
Lens hood
Filter thread: 67 mm
Dimensions lens (H x W x D): 77.4 x 77.4 x 87.2 mm
Weight lens: approx. 350 g
Elektr. napájecí zdroj: Speciální baterie
Typ baterie / aku: Panasonic DMW-BLK22E
Potřebný počet baterií: 1
Bluetooth: ano
WLAN: ano
Počet slotů pro paměťové karty: 2
SD: SD / SDHC / SDXC
USB: 1x USB-C 3.2 Gen 2 (10 GBit/s)
HDMI: ano
Připojení sluchátek: ano
Připojení mikrofonu: ano
TTL měření expozice: ano
Poměrové měření: ano
Měření bodového světla: ano
Full-Field Integral měření: ano
Centrální měření: ano
Stabilizátor obrazu: ano
Bajonetový uzávěr: L-Mount
Hledáček: OLED, elektronický vyhledávač barev
Snimky s bleskem: Nasazovací kryt pro externí blesk
GPS příjemce: volitelný
Fotoaparát: Tělo systémové kamery
Automatický program: ano
Automatické časování: ano
Automatické regulování clony: ano
Manuální expozice: ano
Dlouhotrvající osvětlení: ano
Rozlišení fotografií (pixel): 6000 x 4000
Hloubka barvy (Bit): 10
Typ: LCD
Touchscreen: ano
Diagonála displeje (cm): 7,62
Diagonála displeje (palce ): 3
Výklopný display: ano
Live-View: ano
Rychlost/čas závěrky (s): 1/8000 - 60
Bulb (dlouhodobé osvětlení): ano
Ohnisková vzdálenost (ca) odpov. 35 mm KB: 20 - 60
Síla světla: 3,5 - 5,6
Nastavení ostrosti: Autofokus / manuální fokus
Stabilizátor obrazu: ne
Závit filtru (mm): 67
Max. rozlišení videa (pixel): 5952 x 3968
4k video záznam (UHD): 60fps
Full HD video záznam (1080p): 120fps
Rozlišení snímače (mio. pixel): 24,2
Sensor Chip: CMOS
Senzorový čip (mm): 35,6 x 23,8
Samočištění senzoru: ano
Tělo fotoaparátu: ano
Objektiv: 1
Blesk: ne
Barva: černá
Šířka (mm): 134,3
Výška (mm): 102,3
Hloubka (mm): 90,1
Hmotnost těla (g): 657
Hmotnost 1. objektivu (g): 350

---
