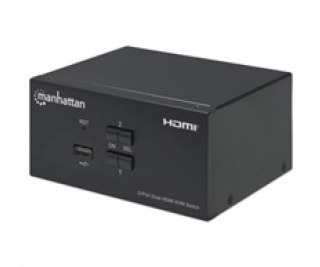

2-Port Dual-Monitor HDMI KVM Switch
The Manhattan 2-Port Dual-Monitor HDMI KVM Switch is a compact solution for providing access and control over two HDMI/USB-equipped computers from a single keyboard and mouse and up to two monitors. It helps save you time on installation with its included combo cables — there s no need to purchase additional ones — that easily connect directly to the system.
Easy to use for improved efficiency This KVM Switch helps you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. You select your connected computers and audio/mic channels through the front-panel push-buttons or keyboard hotkeys. The enhanced control this KVM switch provides is ideal for high graphical content in applications like video editing, digital signage server control, medical imaging, multimedia design or dual system control workstations. It is also great for sharing two multimedia PCs or notebooks with a single HDMI TV.
4K resolution at 30 Hz and full audio support The ever-growing demand for higher video quality and the evolution of HDMI technology has put 4K-enabled computers and displays in many visually ambitious workplace and commercial applications. Supporting up to 3840 x 2160 (4K) resolution at 30 Hz, this KVM Switch is right at home in your Ultra-High-Definition-equipped setup. You can connect a second monitor to enjoy maximized viewing. You also get full audio compatibility, with support for digital audio and separate analog 3.5 mm stereo audio jacks for microphones and speakers or headphones.
Additional USB hub port The integrated USB 2.0 hub offers a front-facing USB-A port in addition to keyboard and mouse ports. This hub port works among your attached computers as if it were directly connected to your host computer so you can avoid having to constantly plug/unplug devices such as printers, storage drives or scanners.
Compatible with Windows, Mac, Linux and more Being OS independent, this HDMI KVM switch not only supports Windows, Mac OS and Linux, but it is also compatible with Unix and even Novell NetWare to fully support older legacy hardware.

Controls two HDMI and USB-A equipped computers from a single keyboard and mouse and up to two monitors
Full stereo audio support through 3.5 mm speaker and microphone connections
Switching via front-panel push buttons or keyboard hot keys
Resolutions up to Ultra-High-Definition (UHD) 4K@30Hz (3840 × 2160)
Additional USB 2.0 type-A hub port to connect storage drives, printers, scanners and more
Digital audio support through HDMI with Dolby True HD and DTS HD Master Audio
Ideal for sharing two multimedia PCs or notebooks with a single HDMI TV
Supports Windows, Mac OS, Linux, Unix and Novell
True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs
HDCP 1.4 compliant
BIOS-level hardware installation; no drivers or control software required
Two 1.8 m (6 ft.) HDMI/USB-B/Audio to USB-A combo connection cables included
Compact desktop format with rugged metal housing
USB powered; use optional 9 V / 300 mA power supply (not included) if your setup delivers insufficient power input
Three-year warranty


TECHNICAL SPECIFICATIONS



Standards and Certifications
CE RoHS FCC


Connections
Console ports - 2 x HDMI female 19-pin - 2 x USB-A female 4-pin - 1 x 3.5 mm stereo audio microphone female - 1 x 3.5 mm stereo audio speaker female Computer/host ports - 4 x HDMI female 19-pin - 2 x USB-B female 4-pin - 2 x 3.5 mm stereo audio microphone/speaker female combo port Other - 1 x USB-A female 4-pin - 1 x 9.0 V DC / 0.3 A power jack


LEDs
2 x red (online) 2 x green (selected)


Supported Operating Systems
Windows 2000/2003/XP/Vista/7/8/8.1/10 Apple Mac OS 9.0 to 10.6 (Snow Leopard) Linux RedHat 9.0 or higher/SuSe 10 or higher/Debian 3.1/4.0/Ubuntu 7.04/7.10 UNIX AIX 4.3 or higher/FreeBSD 5.5 or higher/Sun Solaris 8 or higher Novell Netware 6.0 or higher


Physical
Dimensions (L x W x H): 132 x 92 x 66 mm (5.2 x 3.62 x 2.6 in.) Weight: 600 g (1.32 lbs.) Housing: metal


Operating Environment
Operation temperature: 0 - 50°C (32 - 122°F) Storage temperature: -20 - 60°C (-4 - 140°F) Humidity (noncondensing): 0 - 80%


Package Contents
2-Port Dual-Monitor HDMI KVM Switch Two 1.8 m (6 ft.) HDMI/USB-B/Audio to USB-A combo cables included

---
