Popis produktu

Počet: 1x
Provedení: Ochranný kontakt (Typ F)
Konstrukce: zdířka
Počet zásuvek: 1
Oblast použití: Interiér
Vypínač: ne
Ochrana před nadměrným napětím: ano
Třída ochrany (IP kód): IP20
Typ: Stmívač
Barva: bílá
Šířka (mm): 55
Výška (mm): 107
Hloubka (mm): 76
Hmotnost (g): 104
Počet: 1x
Provedení: Ochranný kontakt (Typ F)
Konstrukce: Zástrčka

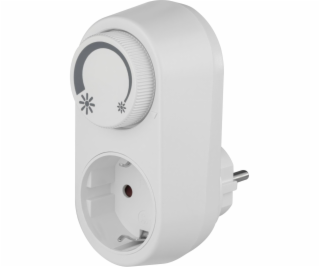

REV intermediate plug with integrated LED dimmer, white EMD201 20270112

Safe lighting accessories for replacement and retrofitting from REV Ritter for a reliable electrical installation in and around the home. Thanks to the use of tested materials and careful workmanship, these tried-and-tested products guarantee high quality and long-lasting use. From simple insulating material sockets to reliable intermediate switches and extendable light pendants - REV s extensive product range can fulfil the individual requirements of your home electrics.


PRACTICAL - ideal for dimming your lights via rotary knob
EASY - adapter as an intermediate plug for a standard socket, no installation or electrical connection required
FUNCTIONAL - for incandescent lamps, high-voltage halogen lamps (30-200W), and dimmable LEDs 3-24W
TECHNICAL SPECIFICATIONS: 230 V~; 50 Hz
SAFE - with increased touch protection in the socket


Technical specifications:


Mounting type: Intermediate plug
IP protection class: IP20
Material: Plastic
Material quality: Polycarbonate (PC)
Design: Protective contact
Rated current: 16.000 mA
Operating mode: Rotary knob
Rated voltage: 230 V
Number of protective contact sockets: 1
Frequency: 50 Hz
Switching capacity resistive load (incandescent lamp / high-voltage halogen lamp): 30 - 200 W
LED switching capacity: 3 - 24 W
Protection class: I
With protective contact plug for BE/DE/NL/RU (Type F): Yes
Ambient temperature (operation): 0°C – 35°C
Ambient temperature (storage): 0°C - 25°C
Application area: indoor
Color: White
Dimensions (LxWxH): 107 x 55 x 76 mm
Net weight: 104 g
Volume in cm3: 447 cm3
USB: Type of current / voltage type: DC

---
