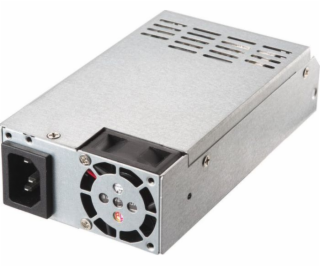

* SUB Flex ATX Power Supply
The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low noise fan control makes them a pleasant companion in any industrial system.
OVERVIEW :



SUG
SUB
M1U


80PLUS
Gold
Bronze
Gold


Intel ATX 12 V v2.31 compliant
YES
YES
YES


EPS 12 V compliant
YES
YES
YES


Flex ATX v1.0 compliant
YES
YES
YES


Dimensions
150 mm (L) x 81.5 mm (W) x 40.5 mm (H)
150 mm (L) x 81.5 mm (W) x 40.5 mm (H)
190 mm (L) x 81.5 mm (W) x 40.6 mm (H)


DC to DC converter design
Yes
No
Yes


Forward converter circuit
No
YES
No


Fully modular cables
Yes
Yes
Yes


Semi modular cables
No
No
No


Fixed cables
No
No
No


40 mm double ball bearing fan
Yes
Yes
Yes


S3FC - including Fanless mode
No
Yes
Yes


S2FC - Smart and Silent Fan Control
Yes
No
No


Easy-swap connector design
Yes
Yes
Yes


Zero minimum load on 3.3 V rail
Yes
No
Yes


Short circuit protection on all outputs
Yes
Yes
Yes


Over voltage protection
Yes
Yes
Yes


Over power protection
Yes
Yes
Yes


100 % HiPot test
Yes
Yes
Yes



Specifications



SSP-300SUB



Specifications




Input frequency
47 / 63 Hz


Inrush current at cold start
100 A max.


Efficiency
80 PLUS Bronze


Line regulation
± 1 % (typical)


Load regulation
± 5 % (typical)


Cross regulation
± 5 % (typical)


Ripple / noise
1 %


MTBF, full load @ 25 °C ambient (excl. DC fan)
> 100,000 hours


Active Power Factor Correction
95 % (typical)






DC Outputs




+3.3 V
+5 V
+12 V1
+12 V2
-12 V
+5 V sb
Total continuous power
Input Type


14 A
17 A
18 A
18 A
0.8 A
2 A
300 W
100–240 VAC


110 W
252 W
9.6 W
10 W

---
