Popis produktu

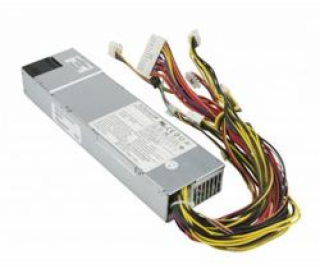

The Supermicro PWS-605P-1H provides up to 600w output. It features PMBus 1.2 support for remote management. The power supply is 80 Plus certification and active PFC for high efficiency.

Total Power Output
600W

Type
Single

Type of Power Supply
Power Supply

Form Factor
1U

Dimension (W x H x L)
76 x 40.4 x 279.4 mm

+5V
18A

+12V
49A

+3.3V
15A

5V Standby
3A

Input Voltage Range
100-240Vac

Input Frequency Range
50-60Hz

Output Type
24Pin ATX Cable Output

8Pin / 4Pin (12V) Connector
Both

PFC
Yes

Voltage / Current
Yes

Energy Efficiency
94%

80 Plus Certification
80 Plus Platinum

Validated Systems
SYS-1028R-MCT, SYS-1028R-TDW, SYS-1029P-MT, SYS-1029P-WT, SYS-5019P-WT, SYS-6017R-NTF, SYS-6017R-TDAF, SYS-6017R-TDT+, SYS-6018R-TDTP, SYS-6018R-TDW, SYS-6019P-WT, SYS-6027R-TDT+

Validated Chassis
CSE-111TQ-600CB, CSE-111TQ-600UB, CSE-113AC2-605WB, CSE-113MFAC2-605CB, CSE-113MTQ-600CB, CSE-113TQ-600CB, CSE-113TQ-600UB, CSE-113TQ-600WB, CSE-213LT-600LPB, CSE-815TQ-600CB, CSE-815TQ-600UB, CSE-815TQ-600WB, CSE-815TQC-605CB, CSE-815TQC-605WB, CSE-825TQ-600LPB, CSE-825TQ-600WB, CSE-825TQC-600LPB, CSE-825TQC-600WB

Warranty
1 year warranty

Product Environmental Compliance
RoHS and REACH compliant, details available upon request

---
