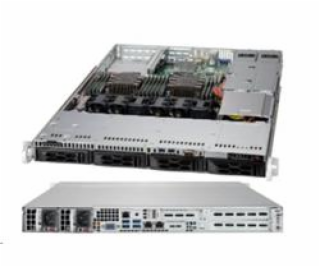

CSE-LA15TQC-R504W SuperChassis LA15TQC-R504W



Form Factor

Optimized for WIO (W series) motherboards, support MB size up to 12.3 x 13.4



Processor Support

Dual, single Intel® / AMD processors



Dimensions

Height 1.7 (43 mm)

Width 17.2 (437 mm)

Depth 25.6 (650 mm)

Gross Weight 28 lbs (12.7 kg)

Packaging (W x H x L) 23.2 (589 mm) x 7.1 (180 mm) x 32.1 (815 mm)

Available Color Black



Expansion Slots

2x full height expansion slot(s), 1x low-profile expansion slot



Drive Bays

4 x 3.5 (tool-less) or 2.5 (screw) hot-swap SAS3/SATA drive bay
SAS or enterprise SATA HDD only recommended



Backplane

1U 4-Port 12Gbps Backplane Support 4x3.5



Peripheral Drives

Optional 1 x USB + COM port tray
Optional 1 x 2.5 internal fixed drive bay



Front Panel

Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 3 x 40x56mm counter-rotation PWM fan(s)



System Monitoring

Optional Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 500W/600W redundant single output 80PLUS Platinum
Power Efficiency 92%

Total Output Power and Input 500W with Input 100 - 127Vac
600W with Input 200 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 322 x 54.5 x 40.25 mm

Output Type Backplanes (gold finger)

+12V Max: 42A (100Vac - 127Vac)
Max: 50A (200Vac - 240Vac)
Max: 50A

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT112-2420
O/P: 12V/54
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC CCC
CE/EMC
FCC
TUV/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable(S) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Fan(s) FAN-0156L4 3 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Front Panel FPB-FP815U 1 815 UIO front control board (U)
Cooling Fan & Accessory CSE-PT0135 1 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
Cooling Fan & Accessory MCP-340-00035-0B 3 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00184-0B 4 Black gen-9 tool-less cost-effective 3.5 HDD tray (no dummy)
Power Distributor PDB-PT116-L8824 1 1U cost effective Power Distributor Board support up to 1KW,
Part(s) MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole)
Part(s) MCP-120-00053-0N 2 Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
Power Supply & Accessory PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide
Power Supply & Accessory PWS-504P-1R2 2 AC-DC/DC-DC 500W, Platinum efficiency, AC inlet: C14,RoHS
Power Supply & Accessory MCP-250-81502-0N 1 SC815 Redundant Power Distributor Cover
Mounting Rail(s) MCP-290-00105-0N 1 set Inner rail, front, screw type
Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS




Optional Parts List

Part Number Qty Description
Heatsink / Retention N/A - Please refer to our Thermal Components Matrix
Front Tray MCP-220-81510-0N - USB 3.0 + COM tray kit for LA15 (cost-effective)
Hard Drive Carrier MCP-220-81511-0N - FDD size Tray support 1x 2.5 HDD for LA15 (cost-effective)
Rail MCP-290-00102-0N - Outer rail, quick-release type, 25.6 to 33.05
Rail MCP-290-00054-0N - Rail set, quick/quick, optional for 1U 17.2
Chassis parts MCP-290-00088-0N - SC119 Intrusion assembly
Air Shroud MCP-310-81305-0B - Mylar air shroud for 1U X11SPW-TF,RoHS
Air Shroud MCP-310-19019-0B - SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
Air Shroud MCP-310-19002-0N - SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
Air Shroud MCP-310-81306-0B - Mylar air shroud for 1U X12SPW-TF,RoHS

---
