Popis produktu

1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”
4 x 3.5" hot-swap SAS3/SATA drive bay
SAS or enterprise SATA HDD only recommended
4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
1U 500W/600W redundant single output 80PLUS Platinum_x000D_
2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fans for AOC cooling


Specifications















Product SKUs





CSE-815TQC4-R504WB3

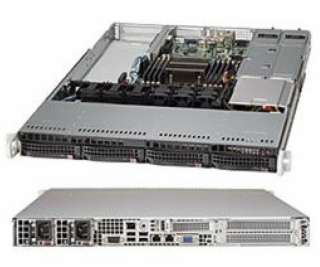

SuperChassis 815TQC4-R504WB3















Form Factor







1U Chassis, Support proprietary WIO MB size 8”x13” and up to 12.3”x13”















Processor Support







Dual and Single Intel® and AMD processors















Dimensions





Height


1.7" (43 mm)




Width


17.2" (437 mm)




Depth


25.6" (650 mm)




Gross Weight


36 lbs (16.33 kg)




Packaging (W x H x L)


23.6" (599 mm) x 7.9" (201 mm) x 34.1" (866 mm)




Available Color


Black















Expansion Slots







1x Low-profile expansion slot(s)
2x Full-height, Full-length expansion slot(s)















Drive Bays







4x 3.5" hot-swap SAS3/SATA drive bay
SAS or enterprise SATA HDD only recommended















Backplane







4-Port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices















Front Panel





Button


Power On/Off button
System Reset button
Unit Identification (UID) button




LED


Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED


























Systems Cooling





Fans


Optional 2x fans for AOC cooling
4x 40x56mm counter-rotation PWM fan(s)















Operating Environment (System)





Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)















Power Supply





1U 500W/600W redundant single output 80PLUS Platinum


Power Efficiency


92%




Total Output Power and Input


600W with Input 200 - 240Vac
500W with Input 100 - 127Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


322 x 54.5 x 40.25 mm




Output Type


Backplanes (gold finger)




+12V


Max: 50A / Min: 0A (200Vac - 240Vac)
Max: 42A / Min: 0A (100Vac - 127Vac)
Max: 50A / Min: 0A




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT112-S2424
O/P: 12V/54
+5V Max: 25A
+3.3V Max: 25A
-12V Max: 0.6A




Certification


   Platinum Certified















Regulatory (Power Supply)





Power Supply Safety / EMC


CCC
CE/EMC
FCC
TUV/CB
UL/CUL










































Components











Standard Parts List



Part Number
Qty
Description


Air Shroud
MCP-310-19002-0N
1
SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB


HD Backplane
BPN-SAS3-815TQ-N4
1
4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices


Cable(s)
CBL-0335L
1
FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF


Cable(s)
CBL-PWCD-0160-IS
2
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH


Part(s)
MCP-230-00036-0N
1
Top cover with 1 mylar for SC815 (cost-down)


Part(s)
MCP-240-00099-0N
1
1U WIO riser card bracket for SC113, SC815, SC119, SC819


Part(s)
MCP-270-81505-0N
1
Chassis base for SC815T, U version, Redundant PWS(cost-down)


Part(s)
MCP-290-00088-0N
1
SC119 Intrusion assembly


CD-ROM & Accessory
CSE-PT93L-B
1
Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS

---
