Product SKUs

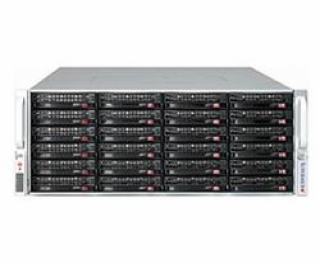

CSE-847BE1C4-R1K23LPB SuperChassis 847BE1C4-R1K23LPB



Form Factor
4U Chassis for motherboard support size: (12 x 10 ) (13.68 x 13 ) (9.6 x 9.6 )



Processor Support

Single and Dual Intel® and AMD processors



Dimensions

Height 7 (178 mm)

Width 17.2 (437 mm)

Depth 27.5 (699 mm)

Gross Weight 91 lbs (41.28 kg)

Packaging (W x H x L) 27.2 (691 mm) x 17.4 (442 mm) x 39.6 (1006 mm)

Available Color Black



Expansion Slots

7 low-profile expansion slot(s)



Drive Bays

36 x 3.5 hot-swap SAS/SATA drive bay with SES3
Optional 2 x 2.5 hot-swap drive bay



Backplane

12-Port 2U Backplane with Expander support up to 8 x 3.5 SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD



Peripheral Drives

Optional 2 x 3.5 internal fixed drive bay
Optional 4 x 2.5 internal fixed drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 7 x 80mm high-performance fan(s)



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency 96%

Total Output Power and Input 1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 336 x 76 x 40 mm

Output Type Backplanes (gold finger)

+12V Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT847-8824
O/P: 12V/135
+5V Max: 100
+3.3V Max: 30
-12V Max: 0.6

Certification Titanium Certified Titanium Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL

---
