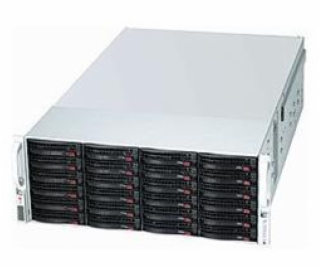

CSE-847E1C-R1K23JBOD SuperChassis 847E1C-R1K23JBOD



Form Factor

4U SAS3 JBOD storage chassis



Dimensions

Height 7 (178 mm)

Width 17.2 (437 mm)

Depth 27.5 (699 mm)

Gross Weight 95 lbs (43.09 kg)

Packaging (W x H x L) 27.2 (691 mm) x 17.4 (442 mm) x 39.6 (1006 mm)

Available Color Black



Drive Bays

44 x 3.5 hot-swap HDD bays for JBOD solution



Qualified SAS Controllers

AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller



Backplane

24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
20-port 4U (SC847E1C JBOD) SAS3 12Gbps single-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD



Front Panel

Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button

LEDs 1 Network Activity LEDs
Fan Fail/System Over Heat LED
Power Status LED
Power Fail LED
Unit Identification (UID) LED







Systems Cooling

Fans 7 x 8cm hot-swap redundant PWM cooling fan(s)



System Monitoring

IPMI



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency 96%

Total Output Power and Input 1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 336 x 76 x 40 mm

Output Type Backplanes (gold finger)

+12V Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT847-8824
O/P: 12V/135
+5V Max: 100
+3.3V Max: 30
-12V Max: 0.6

Certification Titanium Certified Titanium Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
HD Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
HD Backplane BPN-SAS3-847EL1 1 20-port 4U (SC847E1C JBOD) SAS3 12Gbps single-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Control Board MCP-280-84701-0N 2 SC847D JBOD Mini SAS HD Ext-to-Int adapter ,HF,RoHS/REACH,PBF
Cable(S) CBL-CDAT-0601 2 4 Pin to 4 Pin I2C cable, 50cm, 26AWG
Cable(S) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(S) CBL-SAST-0568 2 Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
Cable(S) CBL-SAST-0593 4 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Cable(S) CBL-SAST-0593-01 4 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI]
Power Distributor PDB-PT847-8824 1 24pin standard output with 5V high current 100Amp power distributor board for SC847
Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH




Optional Parts List

Part Number Qty Description
Rail MCP-290-00058-0N - Short rail set, quick release, 19.6 ~26.9 Extendable Length
HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
Cable CBL-SAST-0573 - 1m external Mini SAS HD to external mini SAS HD.28AWG,HF,RoHS/REACH,PBF
Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
Cable CBL-SAST-0677 - 3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH

---
