* Specifications ?






Product SKUs

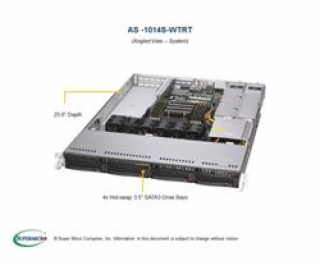

AS -1014S-WTRT A+ Server 1014S-WTRT (Black)



Motherboard


Super H12SSW-NT


Processor/Cache

CPU Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
Socket SP3
Support CPU TDP up to 280W

Cores Up to 64 Cores



System Memory

Memory Capacity 8 DIMM slots
Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs



On-Board Devices

Chipset System on Chip

SATA SATA3 (6Gbps)

Network Controllers Dual 10GBase-T LAN with via Broadcom BCM57416

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video ASPEED AST2500 BMC



Input / Output

NVMe 4 U.2 NVMe Support via optional kit

SATA 4 SATA3 (6 Gbps) ports

LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 3.0 ports (4 rear, 1 Type A)

Video 1 VGA port

DOM 2 SuperDOM (Disk on Module) ports



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM



Management

Software Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN

Power Configurations ACPI / APM Power Management



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 1U Rackmount

Model CSE-815TS-R504WBP4



Dimensions and Weight

Height 1.7"" (43mm)

Width 17.2"" (437mm)

Depth 25.6"" (650mm)

Package 23.5"" (W) x 8.5"" (H) x 33.7"" (L)

Weight Gross Weight: 46 lbs (20.87kg)
Net Weight: 22 lbs (9.98kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
UID button

LEDs Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED



Expansion Slots

PCI-Express 2 PCI-E 4.0 x16 (FHFL) slots
1 PCI-E 4.0 x16 (LP) slot
2 PCI-E?/?SATA 3.0 x2 NVMe M.2 slots



Drive Bays

Hot-swap 4 Hot-swap 3.5"" SATA3 drive bays
Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices

Peripheral 1 Slim DVD-ROM drive bay (optional)



Backplane

SAS/SATA/NVMe HDD Backplane


System Cooling

Fans 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC



Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power 500W

Dimension
(W x H x L) 54.5 x 40.25 x 320 mm

Input 100-240Vac, 50-60Hz, 6.1-2.6A

+12V Max: 42A / Min: 0.5A

+5Vsb Max: 4A / Min: 0A

Output Type Gold Finger Connector Mating with Molex 45984-4343

With Power Distributor +5V: 25A
+3.3V: 12A
-12V: 0.6A

Certification Platinum Level Certified Platinum Certified
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

---
