Add-on Module

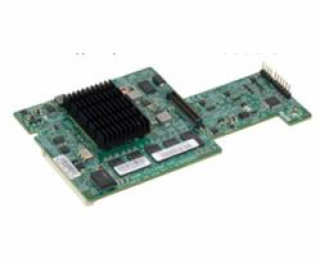

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Mezzanine Card



The Supermicro MegaRAID Low Profile  AOM-S3108M-H8L  features 8 internal SAS connectors for high-performance storage connectivity. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers  cost effective  storage solutions using SATA drives and  maximum performance and reliability  with SAS drives.



With the option of SuperCap/TFM unit, this provides  cached data protection  and allows system builders to protect cached data during power failures.



Optional Cachecade feature significantly boosts systems performance and minimize rebuild times.



The  AOM-S3108M-H8L  supports up to  240 HDD  w/ RAID 0, 1, 5, 6, 10, 50 and 60.







To order, contact your distributor. This product is only available through Supermicro.










Compliance





RoHS



RoHS Compliant 6/6, Pb Free

























Key Features







• Broadcom 3108 8-port PCI-E SAS-3 controller

• 8-port (8 internal) 12Gb/s per port

• Supports RAID 0, 1, 5, 6, 10, 50, 60

• On board hardware IO Processor

• 2GB 1866MHz DDR3 on-card cache

• MegaRAID configuration and management utilities

• Power management support

• SAS transfer rates up to 12Gb/s and SATA rates up to 6Gp/s

• Optional Cachecade feature for higher performance

• Supports SSP, SMP, STP and SATA protocols

• Optional Supercap/TFM Unit for cached data protection

   (BTR-CV3108-U1) - operating temperature (Ambient)

   from 10°C - 55°C

• OS Support : Windows 2012, 2k8 64/32 bit, Red Hat

   Enterprise and SUSE Linux

• Power Usage 16W











Dimensions





H x L
3.2" x 5.2"










Tested Motherboards and Servers





Motherboards

X10DSC+










Tested Hard Drives





Tested

[  Tested HDD List  ]

---
