Popis produktu













Product SKUs

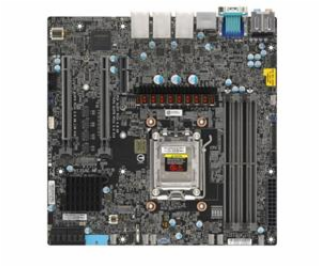

MBD-H13SAE-MF



Physical Stats


Form Factor
Micro-ATX


Dimension
9.6" x 9.6" (24.384cm x 24.384cm)


Processor


CPU
AMD Ryzen™ 7000 series Processors


Single Socket LGA-1718 (Socket AM5) supported, CPU TDP supports Up to 170W TDP



Core
Up to 16 cores, 32 threads


System Memory


Memory Capacity
4 DIMM slots


Memory Type
5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC)


DIMM Sizes
8GB, 16GB, 24GB, 32GB, 48GB


Memory Voltage
1.1V


On-Board Devices


Chipset
B650


SATA
4 SATA3 ports; RAID 0,1,5,10


IPMI
ASPEED AST2600 BMC


Audio
ALC 888S HD Audio


Network Controllers
Dual LAN with Intel® i210 Gigabit Ethernet Controller


Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI



Input / Output


USB
1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb)


5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode)



2 USB 3.2 Gen1 port(s) (2 headers 5Gb)



1 USB 2 port(s) (1 via header 2 ports by a header)



Video Output
1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode


Serial Port
1 COM Port(s) (1 header)


TPM
1 TPM Header











Expansion Slots


PCIe
1 PCIe 4.0 x4,


2 PCIe 5.0 x16 slots (16/NA or 8/8)



M.2
M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1


Form Factor: 2280/22110



Key: M-Key



System BIOS


BIOS Type
AMI 32MB SPI Flash EEPROM


BIOS Features
ACPI 6.4


SMBIOS 3.5 or later



UEFI 2.8



Plug and Play (PnP)



USB Keyboard support



Management


Power Configurations
Power-on mode control for AC power loss recovery, Power button override mechanism, S3/S4/S5


Security


Hardware
Trusted Platform Module (TPM) 2.0


PC Health Monitoring


Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support


FAN
7x 4-pin fan headers (up to 7 fans)


Operating Environment


Operating Temperature Range
0°C - 50°C (32°F - 122°F)


Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)


Operating Relative Humidity Range
10% - 85% (non-condensing)


Non Operating Relative Humidity Range
10% - 95% (non-condensing)
















? ?

---
