Product SKUs

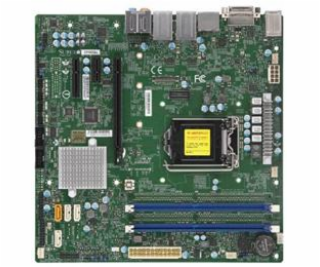

MBD-X11SCQ X11SCQ



Physical Stats

Form Factor uATX

Dimensions 9.6 x 9.6 (24.38cm x 24.38cm)



Processor/Cache

CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP



System Memory

Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® Q370

SATA Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Audio 7.1 HD Audio

Graphics Intel® HD Graphics
3 Independent Displays



Input / Output

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 6 USB 2.0 ports (2 rear + 4 via headers)
6 USB 3.1 ports (4 rears (2 Type A + 2 Type C) + 2 via headers

Video Output 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
3 Independent Displays

Serial Port / Header 6 COM Ports (6 headers)


TPM TPM Header & Chip both







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x1,
2 PCI-E 3.0 x4

M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2242/2280/22110
Key: M-Key



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup



Management

Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog

Power Configurations ATX Power connector
ACPI Power Management



PC Health Monitoring

Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), 4 fans with tachometer monitoring, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT

FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring

Temperature CPU thermal trip support, Monitoring for CPU and chassis environment

LED Power LED

Other Features ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

---
