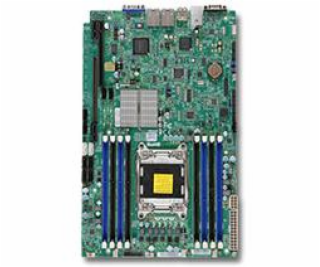

MBD-X9SRW-F -B ##X9SRW-F (Bulk Pack)



Physical Stats

Form Factor ##Proprietary

Dimensions ##8.15 x 13.05 , (20.7cm x 33.1cm)



Processor/Cache

CPU ##Single Socket R (LGA 2011)
##Intel® Xeon® processor E5-2600/1600
and E5-2600/1600 v2 family†
(up to 12 cores and up to 135W)

Note † BIOS version 3.0 or above is required

† E5-1600 series CPU does not support LRDIMM type memory


System Memory

Memory Capacity ##8x 240-pin DDR3 DIMM slots
##Up to 512GB DDR3 ECC LRDIMM
##Up to 256GB DDR3 ECC RDIMM
##Up to 64GB DDR3 ECC/non-ECC UDIMM

Memory Type ##1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes ## 32GB, 16GB, 8GB, 4GB, 2GB, 1GB,
64GB LRDIMM

Memory Voltage ##1.5 V, 1.35 V

Error Detection ##Corrects single-bit errors
##Detects double-bit errors
(using ECC memory)



On-Board Devices

Chipset ##Intel C602 chipset

SATA ##SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
##SATA 3.0 6Gb/s with RAID 0, 1, 5, 10

IPMI ##Support for Intelligent Platform Management Interface v.2.0
##IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
##Nuvoton WPCM450RA0BX

Network Controllers ##Intel® i350 Dual Port Gigabit Ethernet
##Virtual Machine Device Queues reduce I/O overhead
##Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video ##Matrox G200eW 16MB DDR2 graphics controllers



Input / Output

SATA ##2x SATA3 (6Gbps) ports
##4x SATA2 (3Gbps) ports

SCU ##4x SATA ports (3Gbps) via SCU

LAN ##2x RJ45 Gigabit Ethernet LAN ports
##1x RJ45 Dedicated IPMI LAN port

USB ##8x USB 2.0 ports total
(4 rear + 4 via header)

Video ##1x VGA port

Serial Port / Header ##1x serial port

DOM ##1x DOM (Disk on Module) power connector

TPM ##1x TPM Header



OS Compatibility


• Please reference the OS Compatibility Chart for details


Chassis ( Optimized for X9SRW-F )

1U Chassis ##CSE-514-R400W
## CSE-514-R400W
## CSE-815TQ-600WB
## CSE-815TQ-R500WB

2U Chassis ## CSE-825TQ-R500WB

Tower / 4U Rackmount ##CSE-847A-R1K28WB
##CSE-847E16-R1K28WB
##CSE-847E26-R1K28WB

Important Chassis Notes ##To support motherboards based on Intel® Xeon® processor 5500/3500 series, Revision K or later chassis is recommended for most models. Please talk to your sales representative for details.



Expansion Slots

PCI-Express ##2 (x16) PCI-E 3.0 slots
##1 (x8) PCI-E 3.0 (in x16) slot



System BIOS

BIOS Type ##64Mb SPI Flash EEPROM with AMI BIOS

BIOS Features ##Plug and Play (PnP)
##APM 1.2
##DMI 2.3
##PCI 2.3
##ACPI 1.0 / 2.0 / 3.0 / 4.0
##USB Keyboard support
##Hardware BIOS Virus protection
##SMBIOS 2.7.1
##UEFI 2.3.1
##RTC (Real Time Clock) Wakeup



Management

Software ##IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
##SuperDoctor® III
##Watch Dog
##NMI

Power Configurations ##ACPI / APM Power Management
##Keyboard Wakeup from Soft-Off
##CPU Fan auto-off in sleep mode
##Power-on mode for AC power recovery



PC Health Monitoring

Voltage ##Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN ##Total of five 4-pin fan headers supporting up to 5 fans
##5 fans w/ tachometer status monitoring
##Status monitor for speed control
##Status monitor for on/off control
##Low noise fan speed control
##Pulse Width Modulated (PWM) fan connectors

Temperature ##Monitoring for CPU and chassis environment
##CPU thermal trip support
##I2C temperature sensing logic
##Thermal Monitor 2 (TM2) support
##PECI

LED ##CPU / System Overheat LED
##Suspend static indicator LED
##UID/Remote UID

Other Features ##Chassis intrusion detection
##Chassis intrusion header
##Chipkill support
##RoHS, Halogen Free

---
