Key Features


3rd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane? Persistent Memory 200 Series, in 8 DIMM slots
2 PCI-E 4.0 x16
1 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
1 PCI-E 4.0 NVMe x4 SlimSAS Internal Port
1 OCuLink Connector (4 SATA/PCI-E 3.0 x4)
1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
Quad 1G RJ45 with Intel® I350-AM4
Dual 25G SFP28 with Broadcom BCM57414
4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
4 USB 2.0 (Headers)
Supports 12V DC power input






Specifications















Product SKUs





MBD-X12SPZ-SPLN6F

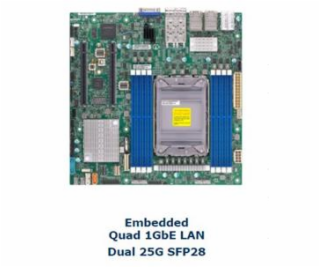

X12SPZ-SPLN6F












Physical Stats





Form Factor


Micro-ATX




Dimensions


9.6" x 9.6" (24.38cm x 24.38cm)












Processor/Cache





CPU


3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP




Cores / Cache


Up to 40 cores












System Memory





Memory Capacity


Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots




Memory Type


3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM




DIMM Sizes


8GB, 16GB, 32GB, 64GB, 128GB, 256GB




Memory Voltage


1.2V




Error Detection


Corrects single-bit errors
Detects double-bit errors (using ECC memory)












On-Board Devices





Chipset


Intel® C621A




SATA


Intel® C621A controller for 6 SATA3 (6 Gbps) ports;
4 SATA ports via OCuLink; RAID 0,1,5,10




IPMI


ASPEED AST2600 BMC




Network Controllers


Quad LAN with 1GbE with Intel® I350-AM4
Dual LAN with Broadcom BCM57414 25G SFP28












Input / Output





LAN


4 RJ45 Gigabit Ethernet LAN ports
2 SFP28 25 Gigabit Ethernet LAN ports




USB


4 USB 2.0 ports (4 via headers)
4 USB 3.2 Gen1 ports (2 rear + 2 via headers)




Video Output


1 VGA port




Serial Port / Header


1 COM Port (1 header)




TPM


TPM Header & Chip both























Expansion Slots





PCI-E


2 PCI-E 4.0 x16




M.2


1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280












System BIOS





BIOS Type


256Mb SPI Flash with AMI BIOS




BIOS Features


ACPI 6.2
UEFI 2.8
SMBIOS 2.8
SMBIOS 3.3 or later
Plug and Play (PnP)
PCI FW 3.0












Management





Software


Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog




System Management Software


IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support




Power Configurations


+12V DC Power Input
ACPI Power Management
ATX Power connector
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL












PC Health Monitoring





Voltage


+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT




Temperature


CPU thermal trip support




LED


Power LED, UID/Remote UID




Other Features


12V DC or ATX Power Source, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS












Operating Environment





Operating Temperature Range


0°C ~ 50°C (32°F ~ 122°F)




Non-Operating Temperature Range


-40°C - 85°C (-40°F - 185°F)




Operating Relative Humidity Range


10% ~ 85% (non-condensing)




Non-Operating Relative Humidity Range


10% ~ 95% (non-condensing)














Parts List







Parts List (Bulk Package)


Name
Part Number
Qty
Description


Motherboard
MBD-X12SPZ-SPLN6F
1
X12SPZ-SPLN6F Motherboard


SATA Cables
CBL-0044L
2
57.5CM SATA FLAT S-S PBF


I/O Shield
MCP-260-00154-0N
1
Standard I/O Shield for X12SPZ


CPU Retention Module
SKT-1205L-P4IC-FXC
1
Socket P4 LGA4189 Carrier

---
