Product SKUs

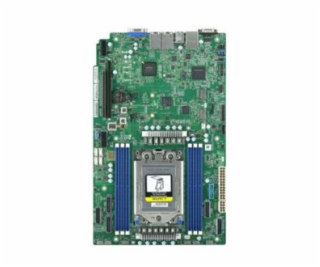

MBD-H13SVW-N



Physical Stats


Form Factor
Proprietary WIO


Dimension
8.15" x 13.05" (20.7cm x 33.15cm)


Processor


CPU
AMD EPYC™ 8004 series Processors


Single Socket SP6 supported, CPU TDP supports Up to 225W TDP



Core
Up to 64 cores, 128 threads


System Memory


Memory Capacity
6 DIMM slots


Up to 576GB ECC Registered RDIMM, DDR5-4800MHz



Memory Type
4800 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 4800MHz (1DPC)


DIMM Sizes
8GB, 16GB, 32GB


Memory Voltage
1.1V


Error Detection
Corrects single-bit errors


Detects double-bit errors (using ECC memory)



On-Board Devices


Chipset
System on Chip


Network Controllers
Dual LAN with Broadcom BCM5720 1GBase-T


Single LAN with Realtek RTL8211F PHY



Input / Output


USB
6 USB 3.0 port(s) (4 USB; 2 via header)


Video Output
1 VGA port(s)


TPM
1 TPM Header


Others
3 MCIO (PCIe 5.0 x8) Port(s)


2 MCIO (PCIe 5.0 x8/SATA3) Port(s)




Expansion Slots



PCIe
1 PCIe 5.0 x16 Right Riser Slot,


1 PCIe 5.0 x32 Left Riser Slot



M.2
M.2 Interface: 2 PCIe 3.0 x4


Form Factor: 2280/22110



Key: M-Key



System BIOS


BIOS Type
AMI 32MB SPI Flash EEPROM


BIOS Features
ACPI 6.4


SMBIOS 3.5 or later



UEFI 2.8



Plug and Play (PnP)



USB Keyboard support



Security


Hardware
Trusted Platform Module (TPM) 2.0


PC Health Monitoring


Voltage
VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby


LED
UID/Remote UID


BMC/IPMI Heartbeat LED



Other Features
RoT


FAN
6x 4-pin fan headers (up to 6 fans)


Operating Environment


Operating Temperature Range
10°C - 35°C (°F - °F)


Non-Operating Temperature Range
-40°C - 70°C (°F - °F)


Operating Relative Humidity Range
8% - 90% (non-condensing)


Non Operating Relative Humidity Range
5% - 95% (non-condensing)












Optional Parts






Part Number


TPM security module (optional, not included)

AOM-TPM-9670V









Standard Parts (Parts Included)






Motherboard / Chassis
MBD-H13SVW-NT
Super H13SVW-NT Motherboard


Motherboard / Chassis


CSE-815BTS-R000WNP


1U Chassis


Backplane
BPN-NVME5-LA15-S4
1U 4-Slot 3.5


Cable
CBL-CDAT-0728
4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1


Cable
CBL-MCIO-1270OT4S2-85
MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS


Cable
CBL-0335L
FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF


Cable
CBL-PWCD-0160-IS
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH


Fan
FAN-0163L4
40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan


Front Panel
MCP-280-00033-0N
Universal Thermal sensor kit with 80cm I2C cable


Front Panel
FPB-FP815U
815 UIO front control board (U)


Power Supply
PWS-861A-1R
1U redundant 800/860W Titanium AC power supply 54.5x40x322mm


Power Supply
MCP-250-81502-0N
SC815 Redundant Power Distributor Cover


Riser Card
RSC-W-66G5
1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R


Riser Card
RSC-WR-6G5H
1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS


Software
SFT-OOB-LIC
License key for enabling OOB BIOS management


Heatsink / Retention
SNK-P0062P-1
1U Passive CPU Heat Sink for AMD Socket SP6 Processors


* Power Distributor
PDB-PT116-SL8824
Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths


* Fan Holder
CSE-PT0135
FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS


* Fan Holder
MCP-340-00035-0B
Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)


* Peripheral Drive
CSE-PT93L-B
Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS


* Drive Tray(s)
MCP-220-00075-0B
Black gen 5.5 hot-swap 3.5" HDD tray


* Rear Window
MCP-240-00202-0N
1U WIO rear window to support top-load riser bracket for SC815B,SC116B


* Rail Set
MCP-290-00016-0N
1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N


* Rail Set
MCP-290-00054-0N
Rail set, quick/quick, optional for 1U 17.2


* Air Shroud
MCP-310-81506-0B
Air block for 1U WIO SC815B with X13SEW


2.5" to 3.5" Toolless Converter Tray
MCP-220-00118-0B •
Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH


GPU Kit
CBL-PWEX-1240
GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM


GPU Kit
CBL-0424L •
GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm


GPU Kit
MCP-310-81504-0B
1U air shroud for SC815/SC116 for Tesla V100 and Tesla T4


NVMe Cable (Drive Bay 0-1)
CBL-MCIO-1235M5Y •
MCIO (x8 to 2 x4) STR,25CM,85OHM


NVMe Cable (Drive Bay 2-3)
CBL-MCIO-1225M5Y •
MCIO (x8 to 2 x4) STR,25CM,85OHM


Software
SFT-DCMS-Single
DataCen

---
