Popis produktu

Product SKUs

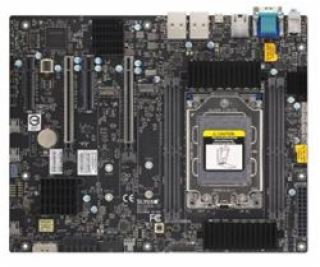

MBD-H13SRA-TF



Physical Stats


Form Factor
ATX


Dimension
12" x 9.6" (30.48cm x 24.384cm)


Processor


CPU
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, AMD Ryzen™ Threadripper™ 7000 Series


Single Socket LGA-4844 (Socket sTR5) supported, CPU TDP supports Up to 350W TDP


Core
Up to 96 cores, 192 threads


System Memory


Memory Capacity
4 DIMM slots


Up to 4TB ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz


Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors


Memory Type
5200 MT/s ECC DDR5 RDIMM/3DS RDIMM


DIMM Sizes
RDIMM/3DS RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB, 512GB, 1024GB


Memory Voltage
1.1V


On-Board Devices


Chipset
TRX50


SATA
4 SATA3 ports; RAID 0,1,10


Audio
ALC 888S HD Audio 5.1 Channel


Network Controllers
Single LAN with ASPEED AST2600, Dedicated LAN for IPMI


Dual LAN with 10Gb Broadcom BCM57416


Input / Output


USB
2 USB 2 port(s) (2 via header)


1 USB 3.2 Gen2x2 port(s) (1 rear type C)


2 USB 3.2 Gen1x1 port(s) (2 via header)


5 USB 3.2 Gen2x1 port(s) (4 rear type A; 1 header type C)


Video Output
1 VGA port(s)


Serial Port
1 COM Port(s) (1 COM rear)


TPM
1 TPM Header











Expansion Slots





PCIe
2 PCIe 5.0 x8, Open rear,


2 PCIe 5.0 x16, metal armor protection, support 2 triple/dual/single-width GPU cards,


1 PCIe 4.0 x8, MCIO connector


M.2
M.2 Interface: 2 PCIe 4.0 x4, RAID 0, 1


Form Factor: 2280/22110


Key: M-Key


System BIOS


BIOS Type
AMI 32MB SPI Flash EEPROM


BIOS Features
ACPI 6.5


SMBIOS 3.6 or later


UEFI 2.9


RTC (Real Time Clock) Wakeup


Management


Software
Redfish API ,  Supermicro Server Manager (SSM) ,  Supermicro Update Manager (SUM) ,  SuperDoctor® 5 ,  Super Diagnostics Offline  ,  KVM with dedicated LAN  ,  IPMI 2.0


PC Health Monitoring


Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, Vmem, GPU temperature, NvMe temperature, Vcore, SAS HDD temperature


FAN
7x 4-pin fan headers (up to 7 fans)


Fan speed control, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED, CPU/Suspend-state indicator LED, 2 4-pin fan headers for CPU liquid cooling pump


Other Features
RoHS


Chassis intrusion detection


Power supply monitoring


Operating Environment


Operating Temperature Range
0°C - 50°C (32°F - 122°F)


Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)


Operating Relative Humidity Range
10% - 85%


Non Operating Relative Humidity Range
10% - 95%






---
