Popis produktu

Product SKUs

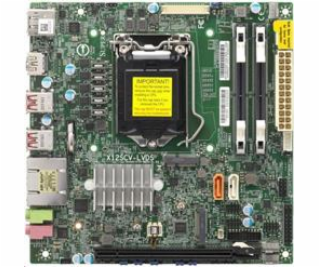

MBD-X12SCV-LVDS X12SCV-LVDS



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7 x 6.7 (17.02cm x 17.02cm)



Processor/Cache

CPU 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP

Cores / Cache Up to 10 cores

Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.



System Memory

Memory Capacity Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots

Memory Type 2933/2666/2400/2133MHz

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® W480E

SATA Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1

Network Controllers Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT

Audio ALC 888S HD Audio

Graphics Intel® HD Graphics
3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS



Input / Output

SATA 2 SATA3 (6Gbps) port

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 4 USB 2.0 ports (4 via headers)
4 USB 3.2 Gen2 ports (4 Rear Type A

Video Output 2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port,
3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS

Serial Port / Header , 2 COM ports via 1 header


TPM TPM Header & Chip both







Expansion Slots

PCI-E 1 PCI-E 3.0 x16 slots (16/NA or 8/8)

M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 3042



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) Wakeup



Management

Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog

System Management Software SuperDoctor 5

Power Configurations +12V DC Power Input
ATX Power connector
ACPI / ACPM Power Management



PC Health Monitoring

Voltage +1.8V, +3.3V, 3 -fan status, Chipset Voltage, CPU temperature, HT, Monitors CPU voltages, PCH temperature, System level control, System temperature, VBAT

Temperature Thermal Control for 3 Fan Connectors

LED Power LED

Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS, System level control, WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SCV-LVDS 1 X12SCV-LVDS Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00158-0N 1 X12SCV Standard I/O shield
QRG MNL-2319-QRG 1 Motherboard Quick Reference Guide



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SCV-LVDS 1 X12SCV-LVDS Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00158-0N 1 X12SCV Standard I/O shield



Optional Parts List
Name Part Number Qty Description
Serial Port Cable for COM1 and COM2 CBL-CDAT-0604 -- Dual Serial Port Breakout Cable with Bracket 40cm
USB Cable CBL-CUSB-0983 -- USB2.0 cable 20cm
Serial Port Cable for COM1 and COM2 CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm



Chassis (Optimized for X12SCV-LVDS)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X12SCV-LVDS)

Server Name

SYS-E300-12C

---
