Product SKUs

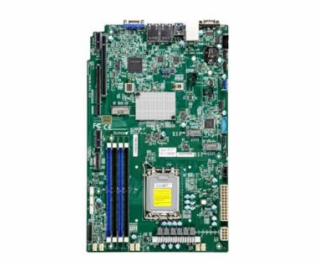

MBD-X13SCW-F







Physical Stats


Form Factor


Proprietary WIO




Dimension


8" x 13" (20.32cm x 33.02cm)









Processor


CPU


Intel® Xeon ® 6300-series/ E-2400/Pentium®* Processor
Single Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
*Pentium® G7400 and G7400T
BIOS 2.0 or above is required to support Intel® Xeon® 6300-series processor




Core


Up to 8 cores









System Memory


Memory Capacity


4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s




Memory Type


4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (1DPC) or 4000 MT/s (2DPC)




DIMM Sizes


8GB, 16GB, 32GB




Memory Voltage


1.1V




Error Detection


Corrects single-bit errors
Detects double-bit errors (using ECC memory)









On-Board Devices


Chipset


Intel® C266




SATA


Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10




IPMI


ASPEED AST2600 BMC




Graphics


1 Aspeed AST2600 BMC port(s)




Network Controllers


Dual LAN with 1GbE with Intel® I210









Input / Output


SATA


8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector




LAN


2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port




USB


4 USB 2.0 port(s) (2 via header; 2 rear)
2 USB 3.2 Gen1 port(s) (2 via header)
3 USB 3.2 Gen2 port(s) (2 rear; 1 type A)




Video Output


1 VGA D-Sub Connector port(s)




Serial Port


2 COM Port(s) (1 header; 1 rear)




TPM


1 TPM Header























Expansion Slots


PCIe


1 PCIe 5.0 x16 Left Riser Slot,
1 PCIe 4.0 x4 Right Riser (in x16) slot




M.2


M.2 Interface: 2 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key









System BIOS


BIOS Type


AMI 32MB AMI UEFI




BIOS Features


ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3









Management


Software


SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities




Power Configurations


ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN









Security


Hardware


Trusted Platform Module (TPM) 2.0









PC Health Monitoring


Voltage


VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby




LED


UID/Remote UID
CPU / System Overheat LED




Temperature


Monitoring for CPU and chassis environment
CPU thermal trip support
PECI




FAN


6x 4-pin fan headers (up to 6 fans)
Fan speed control
6 fans with tachometer status monitoring
Overheat LED indication




Other Features


WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management









Operating Environment


Operating Temperature Range


-5°C - 55°C (23°F - 131°F)




Non-Operating Temperature Range


-30°C - 60°C (-22°F - 140°F)




Operating Relative Humidity Range


8% - 80% (non-condensing)




Non Operating Relative Humidity Range


8% - 90% (non-condensing)

---
