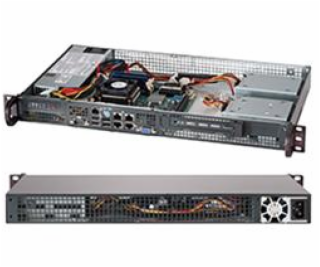

CSE-505-203B SuperChassis 505-203B



Form Factor

9.8"" Mini 1U chassis support for maximum motherboard size: Mini-ITX 6.75"" x 6.75""



Processor Support

3rd Generation Intel® Core™ i7/i5/i3, up to 35W



Dimensions

Height 1.7"" (43 mm)

Width 17.2"" (437 mm)

Depth 9.8"" (249 mm)

Gross Weight 10 lbs (4.54 kg)

Packaging (W x H x L) 25.8"" (655 mm) x 6.1"" (155 mm) x 18.3"" (465 mm)

Available Color Black



Expansion Slots

Up to Up to 1x full-height, half-length PCI expansions slot* *NOTE: Riser Card Required, See Drive Bays for possible configurations



Drive Bays

1 x 3.5"" Internal Drive Bay with 1 Full-height, Half-length PCI
Or 2 x 3.5"" Internal Drive Bay
Or 2 x 2.5"" Internal Drive Bay with 1 Full-height, Half-length PCI
Or 4 x 2.5"" Internal Drive
Ony SAS or enterprise SATA HDD recommended



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED

Ports 1x VGA, IPMI, 4xLANs, 1x COM, 4xUSB, 1xKeyboard/Mouse







Systems Cooling

Fans 1 x High-efficiency power supply with thermal control fan(s)



Operating Environment (System)

Operating Temperature Range 0°C - 40°C (32°F - 104°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 200W Multi-output power supply Gold level w/20pin
Power Efficiency 91%

Total Output Power and Input 200W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 192 x 76 x 40.3 mm

Output Type 20pin ATX

-12V Max: 0.5A / Min: 0A

+12V Max: 16A / Min: 0.1A (100Vac - 240Vac)

+5V Max: 8AA / Min: 0.1A

+3.3V Max: 8A / Min: 0.1A

+5Vsb Max: 2A / Min: 0A

+12Vsb Max: NAA

Certification Gold Certified Gold Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S) CBL-0260L 1 US POWER CORD 18 AWG, PBF
Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
Part(s) MCP-260-00064-0B 1 1U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
Part(s) MCP-290-51001-0N 1 SC510 card retainer
Power Supply & Accessory PWS-203-1H 1 1U 200W Multi-output 80Plus Gold PWS




Optional Parts List

Part Number Qty Description
Cooling FAN-0100L4 - 40x28MM 4-PIN PWM Fan
2.5"" HDD Bracket MCP-220-00051-0N - 2.5"" HDD bracket for 1 x 2.5"" HDD
2.5"" HDD Bracket MCP-220-00044-0N - 2.5"" HDD bracket for 2 x 2.5"" HDD
Fan Kit MCP-320-81302-0B - 40x28mm fan holder (may order two for dual fan configuration)
Cable CBL-0080L - 1x 4pin to 1x SATA S-RA SATA power extension
IO shield MCP-260-00065-0B - 1U I/O shield for X8 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
IO shield MCP-260-00066-0B - 1U I/O shield for X9SPV-M4 use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
IO shield MCP-260-00068-0B - 1U I/O Shield for X9SCAA/-L use on SC510, SC505, SC504 chassis with EMI Gasket,RoHS/REACH,PBF
IO shield MCP-260-00072-0B - 1U I/O Shield for X9SKV on SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
IO shield MCP-260-00076-0B - 1U I/O Shield for X10SLV-Q on SC504, 505, 510 with EMI Gasket,RoHS/REACH,PBF
IO shield MCP-260-00082-0B - 1U I/O Shield for H9SKV on SC504, 505 with EMI Gasket
Riser Card RSC-RR1U-E8 - RSC-RR1U-E8 (Rev 4.00)
Riser Card RSC-RR1U-E16 - RSC-RR1U-E16 with PCI-E x16 output
Riser Card Bracket MCP-120-00063-0N - Riser card bracket for slot-7 in SC504
Rail MCP-290-50404-0N - Rail kit





Motherboard (for CSE- 505-203B)


X9SPV-F-3610ME X9SPV-F-3217UE X9SPV-LN4F-3LE X9SPV-LN4F-3QE
X9SPV-M4 X9SBAA-F X9SCAA X9SCAA-L
X9SPV-M4-3QE X9SPV-M4-3UE X9SKV-B915 X10SBA-L
A1SAi-2750F A1SAi-2550F X10SBA X9SKV-1125
A1SRi-2758F X10SLV-Q A1SRi-2558F X9SKV-1105
X10SDV-TLN4F X10SDV-F X11SBA-LN4F X11SBA-F
X10SDV-8C-TLN4F X10SDV-8C+-LN2F X10SDV-4C-TLN2F X10SDV-6C-TLN4F
X10SDV-4C-TLN4F X10SDV-6C+-TLN4F X10SDV-12C-TLN4F X10SDV-7TP8F
X10SDV-7TP4F X10SDV-16C-TLN4F X10SDV-4C-7TP4F A1SRI-2358F
X10SDV-2C-7TP4F X10SDV-2C-TLN2F X10SDV-4C+-TLN4F A2SAV
A2SAV-L X11SAA A2SDi-2C-HLN4F A2SDi-H-TP4F
A2SDi-H-TF A2SDi-TP8F A2SDi-LN4F A2SDi-4C-HLN4F
A2SDi-12C-HLN4F A2SDi-16C-HLN4F A2SDi-8C-HLN4F A2SDV-8C-TLN5F
A2SDV-16C-TLN5F A2SDV-12C+-TLN5F X11SDV-16C-TP8F X11SDV-12C-TP8F
X11SDV-8C-TP8F A2SDV-8C-LN8F A2SDV-4C-LN8F A2SDV-8C-LN10PF
A2SDV-4C-LN10PF X11SCL-iF X10SDV-TP8F X10SDV-2C-TP8F
X10SDV-2C-TP4F X10SDV-4C+-TP4F X11SSV-M4F X10SDV-8C-TLN4F+
X10SDV-16C-TLN4F+ X10SDV-12C-TLN4F+


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU




Servers (for CSE- 505-203B)


5018A-FTN4 5018D-FN4T 5018D-FN8T 5019A-FTN4
5019D-FN8TP 5019C-FL

---
