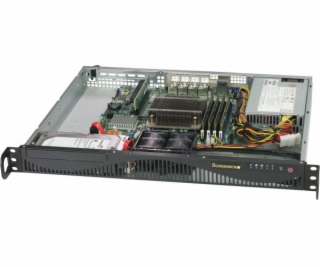

CSE-512F-350B1 SuperChassis 512F-350B1



Form Factor

14.5"" Mini 1U chassis - supports maximum motherboard sizes: ATX 12"" x 10""



Processor Support

Single and Dual Intel® and AMD processors



Dimensions

Height 1.7"" (43 mm)

Width 17.2"" (437 mm)

Depth 14.5"" (368 mm)

Gross Weight 14 lbs (6.35 kg)

Packaging (W x H x L) 22"" (559 mm) x 6.3"" (160 mm) x 20"" (508 mm)

Available Color Black



Expansion Slots

1 full-height & half-length expansion slot(s) (Riser Card Required)



Drive Bays

2 x 3.5"" fixed drive bay
SAS or enterprise SATA HDD only recommended



Peripheral Drives

1 x slim DVD-ROM drive bay
Optional 1 x Slim DVD-ROM Drive



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED







Systems Cooling

Fans 2 x 4cm counter-rotating PWM fan(s)



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency 93%

Total Output Power and Input 350W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 180 x 100 x 40 mm

Output Type 24pin ATX

-12V Max: 0.2A / Min: 0A

+12V Max: 29A / Min: 0.5A (100Vac - 240Vac)

+5V Max: 15A / Min: 0.2A

+3.3V Max: 12A / Min: 0.2A

+5Vsb Max: 3A / Min: 0A

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB



Components ?





Standard Parts List

Part Number Qty Description
Cable(S) CBL-0156L 1 ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
Cable(S) CBL-0260L 1 US POWER CORD 18 AWG, PBF
Cable(S) CBL-0261L 1 40CM 7PIN SATA CABLE S-RA, PBF
Cable(S) CBL-0262L 1 4PIN TO 1xSATA(RA)+1x4PIN(RA)+1xFPD PWS EXT. CBL
CD-ROM & Accessory MCP-290-00006-01 1 Black DVD dummy cover for SC512, RoHS
Fan(s) FAN-0087L4 2 40x56,4 Pin PWM Fan
Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED)
Cooling Fan & Accessory MCP-320-00003-01 1 Fan holder of two 40x40x56mm fans for SC512F-280
Part(s) MCP-290-00005-01 2 Black chassis handle for SC512F-520
Part(s) MCP-260-00024-0N 1 1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Power Supply & Accessory PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)




Optional Parts List

Part Number Qty Description
Rail MCP-290-00004-03 - Chassis rail set (inner and outer)
HDD Tray MCP-220-00051-0N - Single 2.5"" fixed HDD bracket
HDD Tray MCP-220-00044-0N - Dual 2.5"" fixed HDD bracket (without DVD)
Peripheral Drive(s) DVM-TEAC-824B - Black slim IDE DVD (8x DVD, 24x CDR), TEAC
Peripheral Drive(s) DVM-PNSC-824(B) - Black slim IDE DVD (8x DVD, 24x CDR), Panasonic
Peripheral Drive(s) DVM-PNSC-DVD-SBT3 - Black slim SATA DVD (8x DVD, 24x CDR), Panasonic
Peripheral Drive(s) DVM-TEAC-DVD-SBT3 - Black slim SATA DVD (8x DVD, 24x CDR), TEAC
Peripheral Drive(s) MCP-220-51201-0N - Slim IDE DVD kit for SC512,512F-260
Peripheral Drive(s) MCP-220-51202-0N - Slim SATA DVD kit for SC512,512F-260
Rail MCP-290-00055-0N - Rail set, screw/quick, optional for 1U 17.2





Motherboard (for CSE- 512F-350B1)


X11SPi-TF X11SPL-F X11SPM-TF X11SPM-TPF
X11SPM-F X11SCM-F X11SCM-LN8F X11SCL-LN4F
X11SCZ-F X11SCZ-Q


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU




Servers (for CSE- 512F-350B1)


5019C-M4L

---
