Key Features

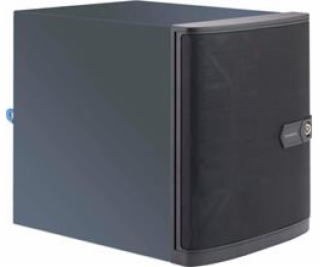

Compact Mini-Tower: D 11"x W 8.27"x H 9.45"
Support wide range of Mini-ITX (6.75"x 6.75") motherboards
4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay
2 USB3.1 Gen1 ports(front), chassis intrusion switch, Kensington Lock supported
1 low-profile expansion slot for add-on cards
350W 80 PLUS Gold-certified High-efficiency power supply












Product SKUs


SuperChassis  721TQ-350B2







Form Factor




Compact Mini-Tower chassis support for motherboard size 6.75" x 6.75"









Dimensions


Height


9.45" (240.03 mm)




Width


8.27" (210.06 mm)




Depth


11" (279.4 mm)




Gross Weight


15 lbs (6.8 kg)




Net Weight


13.5 lbs (6.12 kg)




Packaging (W x H x L)


12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)




Available Color


Black









Expansion Slots




1x Low-profile expansion slot(s)









Drive Bays




2x 2.5" fixed drive bay
4x 3.5" hot-swap SAS/SATA drive bay









Backplane




4x3.5" SAS2/SATA3 backplane w/SES-II









Peripheral Drives




1x slim DVD-ROM drive bay









Front Panel


Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
1 Network activity LEDs
Fan Fail/System Over Heat LED




Port


2x USB 3.0 Port(s)























Systems Cooling


Fans


1x 12cm rear exhaust fan(s)









System Monitoring




Chassis intrusion switch









Operating Environment (System)


Operating Temperature Range


0°C - 40°C (32°F - 104°F)




Non-Operating Temperature Range


-20°C - 60°C (-4°F - 140°F)




Operating Relative Humidity Range


10% - 85% (non-condensing)




Non Operating Relative Humidity Range


10% - 95% (non-condensing)









Power Supply


350W 1U multi-output power supply


Total Output Power and Input


350W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


150 x 81.5 x 40.5 mm




Output Type


24pin ATX




-12V


Max: 0.3A / Min: 0.05A




+12V


Max: 28A / Min: 0.1A (100Vac - 240Vac)




+5V


Max: 15A / Min: 0.2A




+3.3V


Max: 10A / Min: 0.1A




+5Vsb


Max: 2A / Min: 0.05A




Certification


    Gold Certified









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
FCC class B
TUV/CB
UL/CB

















---
