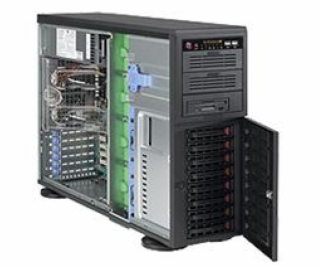

CSE-743AC-668B SuperChassis 743AC-668B



Form Factor

4U chassis - supports for maximum motherboard sizes: 12 x 13 E-ATX and ATX



Processor Support

Dual and Single Intel® and AMD processors



Dimensions

Height 17.8 (452 mm)

Width 7 (178 mm)

Depth 25.5 (647 mm)

Net Weight 52 lbs (23.59 kg)

Gross Weight 55 lbs (24.95 kg)

Packaging (W x H x L) 24.6 (625 mm) x 14 (356 mm) x 31.3 (795 mm)

Available Color Black



Expansion Slots

7 full-height & full-length expansion slot(s)



Drive Bays

8 x 3.5 hot-swap SAS/SATA drive bay with SGPIO



Backplane

8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis



Peripheral Drives

3 x standard 5.25 drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED

Ports 2x USB 3.0 Port(s)







Systems Cooling

Fans 4 x 5000 RPM Hot-swap PWM Cooling Fans



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
PS2 668W Multi-output power supply 80PLUS Platinum
Power Efficiency 92%

Total Output Power and Input 668W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 185 x 150 x 86 mm

Output Type 24pin ATX

-12V Max: 0.1A / Min: 0A

+12V Max: 54A / Min: 0.2A (100Vac - 240Vac)

+5V Max: 20A / Min: 0.1A

+3.3V Max: 15A / Min: 0.1A

+5Vsb Max: 2A / Min: 0A

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Air Shroud MCP-310-49002-0N 1 SC743 Intel DP X9, X8 PC air shroud 12x13MB
HD Backplane BPN-SAS3-743A 1 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Cable(S) CBL-0084 1 16 PIN FRONT CTRL SPLIT CONVECTOR 6
Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S) CBL-0160L 1 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0216L 4 4 TO 4 PIN FAN POWER CABLE, 210MM
Cable(S) CBL-SAST-0631 2 Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
Fan(s) FAN-0074L4 4 80X38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743
Drive Tray(s) MCP-220-00081-0N 1 3.5 dummy HDD (hollow-panned) for MCP-220-00075-0B,RoHS/REACH,PBF
Drive Tray(s) MCP-220-00092-0B 8 Black Hot-swap 3.5inch HDD Tray (w/o logo)
Part(s) MCP-110-00020-0N 2 #632*5L flat head screw (for hot-swap 3.5 HDD tray)
Power Supply & Accessory PWS-668-PQ 1 PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi




Optional Parts List

Part Number Qty Description
Mounting Rail CSE-PT26L-(B) -
Cable CBL-0140L - IDE 80-WIRE CABLE FOR DVD ROM, 60 CM, LF
Cable CBL-0286L - 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG
Fan Kit FAN-0082L4 - 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
Fan Kit FAN-0091L4 - 92X38MM 4-PIN PWM FAN W/ HUS FOR SC743
Fan Kit FAN-0103L4 - 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
Fan Kit FAN-0104L4 - 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25 HH 24X DVD-RW SATA DRIVE PBF
HDD Tray MCP-220-00080-0B - Adaptor HDD carrier to install 2.5 HDD in 3.5 HDD tray

---
