Popis produktu

Přední strana: 1x 120 mm / 1x 140 mm / 1x 240 mm / 1x 280 mm / 1x 360 mm / 1x 420 mm
Pravá strana: 1x 120 mm / 1x 140 mm / 1x 240 mm / 1x 280 mm / 1x 360 mm / 1x 420 mm
Přední strana: 3x 120 mm / 3x 140 mm
Pravá strana: 3x 120 mm / 3x 140 mm
Typ pouzdra: Počítačová skříň Midi-Tower
Mechanika 2,5 : 5x
Mechanika 3,5 : 4x
PCIe rozšiřující sloty: 8x
Izolace: ne
Boční díl: Okno
Síťový adaptér: volitelný
Max. výška ventilátoru CPU (mm): 180
Max. délka grafické karty (mm): 330 / 450
Nainstalované ventilátory: ne
ATX: ano
Micro-ATX: ano
ATX-Extended: ano
Mini-ITX: ano
USB-A: 2x USB-A 3.0
USB-C: 1x USB-C 3.2 Gen 2 (10 GBit/s)
Připojení sluchátek: 1x
Připojení mikrofonu: 1x
Barva: černá
Materiál: Kov / Sklo
Šířka (cm): 26,8
Výška (cm): 53,5
Hloubka (cm): 50
Hmotnost (kg): 12,5

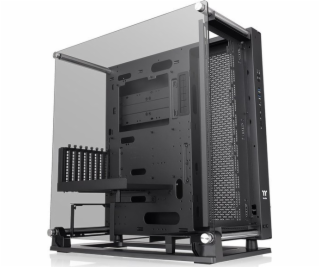

Thermaltake Core P3 TG Pro Black

The Core P3 TG Pro open frame chassis of the iconic Core P series, is an upgraded version of the beloved Core P3 TG. The chassis includes an additional fan bracket, modernized I/O ports and an improvement on the M/B side layout which provides plenty of possibilities for advanced hardware.

The additional fan bracket can be placed at the front or on the top, and three 120mm/140mm fans, a 360mm/420mm radiator, or a distro plate can be fitted.

What’s more, the redesigned recessed compartment on the motherboard's right side makes it more convenient to install GPUs and allows more opportunities for installing a high-end graphics card.

The Core P3 TG Pro features a fully modular design, rotational PCI-E Slots, an extra GPU holder, support for 120mm and 140mm fans, support for 360mm and 420mm radiators, modernized I/O ports and redesigned base for stability. No matter if you are AIO or DIY enthusiast, you will find a place to put your cooling components easily; Core P3 TG Pro is for all PC enthusiasts to “Build Like A Pro”!

Three-Way Placement Layout - the Core P3 TG Pro is designed for use in three different orientations: wall-mounted, vertical, and horizontally placed. Built for customization that reflects the makers’ personality, the Core P3 TG Pro allows easy adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance.

4mm Thick Tempered Glass Window with Stunning Views. Core P3 TG Pro is an open frame case with exceptional viewing capabilities. The 4mm thick side tempered glass panel guarantees the durability of the window and allows you to build with crisp clarity. Users can fully display every component of the system and show off their artistry and skill sets.

The Core P3 TG Pro has excellent expandability, allowing you to build the most high-end system you can dream of. It can support up to an E-ATX (12”x10.5”) motherboard, a CPU cooler with a maximum height of 180mm, two-way GPU placements of up to 450mm in length (without reservoir), a power supply with a length of up to 200mm, and up to five 2.5” SSD or four 3.5” HDD. Users may also choose to install three 120mm/140mm fans, a 360mm/420mm radiator or a distro plate on the additional fan bracket or on the redesigned recessed compartment on the motherboard’s right side. When it comes to cooling solutions, the Core P3 TG Pro is optimized for air cooling and advanced AIO/DIY liquid cooling components as well. With remarkable hardware compatibility, no matter if you are an AIO or DIY lover, you will find a place to put your cooling components easily, giving you a chance to make your dream pc build come true.

Technical Data:


Series: Core
Case Type: Mid Tower
Dimensions (HxWxD): 535 x 268 x 500 mm (21.06 x 10.55 x 19.69 inch)
Net Weight: 12.5kg (27.6lbs.)
Side Panel: 1 x 4mm Tempered Glass
Colour: Black
Material: SPCC
Drive Bays:

2 x 3,5” or 3 x 2,5”
4 x 3,5” or 5 x 2,5” (with HDD bracket)


Expansion Slots (PCIe): 8
Motherboards: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O Ports: 1 x USB 3.2 (Gen 2) Type-C, 2 x USB 3.0, 1 x HD Audio
PSU: Standard PS2 PSU (optional)
Fan Support:

Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm


Bracket (front or top):

3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm




Radiator Support:

Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm


Bracket (front or top):

1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm




Clearance:

CPU cooler height limitation: 180mm
VGA length limitation: 330mm (with reservoir), 450mm (without reservoir)
PSU length limitation: 200mm

---
