Popis produktu

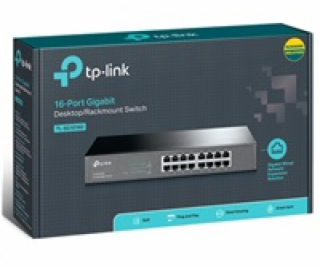

TP-Link TL-SG1016D
16-port Gigabit Desktop/Rackmount Switch, 16 10/100/1000M RJ45 ports, 13-inch steel case
TL-SF1016D je 16 portový malý 10/100/1000Mbps SOHO switch pre menšie skupiny alebo domácnosti. Štandard IEEE 802.3x Full Duplex Flow Control. Auto negociácia rýchlosti, duplexného módu. Kovové púzdro. Napájanie AC 230V, 50Hz
* Spĺňa štandardy IEEE802.3, IEEE802.3u * 16x 10/100/1000Mbps Auto-Negotiation RJ45 portov podporujúcich Auto-MDI/MDIX * Podporuje IEEE802.3x kontrolu toku pre Full Duplex a backpressure pre half-duplex mode * Podporuje automatické určenie MAC adries * LED indikátory pre monitorovanie power, link a activity * Kovové púzdro * Externé napájanie
Switch podporuje technológiu Green, ktorá znižuje odber o 40% v rámci funkce vyradenia neaktívnych portov z prevádzky a v návaznosti na dĺžke použitého patch kábla. Celková priepustnosť switcha je 32 Gbps.
* Innovative energy-efficient technology saves power up to 40% * Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode * Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput * 32Gbps Switching Capacity * 10K Jumbo frame improves performance of large data transfers * Auto-MDI/MDIX eliminates the need for crossover cables * Supports MAC address auto-learning and auto-aging * Store and forward Switching scheme * Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware. * Plug and Play design simplifies installation



HARDWARE FEATURES


Interface
16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100U STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100U STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)

Switching Capacity
32Gbps

External Power Supply
100-240VAC, 50/60Hz

Dimensions ( W x D x H )
11.6*7.1*1.7 in. (294*180*44 mm)







SOFTWARE FEATURES


Transfer Method
Store and Forward

Advanced Functions
802.3X Flow Control, Back Pressure Auto-Uplink Every Port







OTHERS


Certification
FCC, CE, RoHs

Package Contents
16-Port Gigabit Switch Power Cord User Guide

Environment
Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

---

Našli ste v tomto popise chybu? Prosím kontakujte nás na email: info@mader.sk
Rada výrobcov si vyhradzuje právo na zmenu niektorých parametrov, či vlastností bez predchadzajúceho upozornenia.
