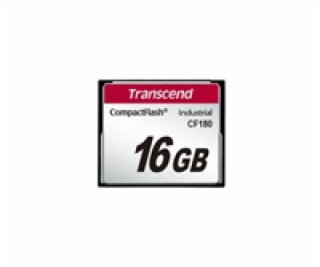

CF180 & CF180I
Transcend s SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend s SLC Mode CF180 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh technology, CF180 CF cards feature error correction capability, maintain data integrity, and have an extended lifespan.

Based on Ultra DMA Mode 5
True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
True IDE Mode: Fixed Disk (Standard)
Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
Built-in ECC (Error Correction Code) functionality
Static Data Refresh
Erase Count Monitoring
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Security Command


TECHNICAL SPECIFICATIONS



Dimensions
42.8 mm x 36.4 mm x 3.3 mm (1.69 x 1.43 x 0.13 )


Pin Count
50 pin


Form Factor
Compact flash card


Storage


Flash Type
MLC NAND flash (SLC mode)


Capacity
128 MB


Operating Environment


Operating Voltage
3.3V±5% 5V±10%


Operating Temperature
Extended Temp.-25°C (-13°F) ~ 85°C (185°F) Wide Temp.-40°C (-40°F) ~ 85°C (185°F)


Storage Temperature
-40°C (-40°F) ~ 85°C (185°F)


Humidity
0% ~ 95%


Shock
1500 G, 0.5 ms, 3 axis


Vibration (Operating)
20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)


Power


Power Consumption (Max.)
0.6 watt(s)


Performance


Read Speed (Max.)
up to 85 MB/s


Write Speed (Max.)
up to 70 MB/s


Mean Time Between Failures (MTBF)
3,000,000 hour(s)


Terabytes Written (TBW)
up to 210 TBW


Note
Speed may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity.


Warranty


Certificate
CE/FCC/UKCA


Warranty
Three-year Limited Warranty

---
