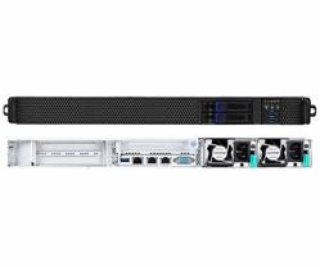

TYAN GA88B8021 (B8021G88V2HR-2T-N) (EOL) Specifications


System Form Factor 1U Rackmount
Chassis Model GA88
Dimension (D x W x H) 34.84 x 17.24 x 1.71 (885 x 438 x 43.5mm)
Motherboard Name S8021GM2NR-2T #
Motherboard Notification # The motherboard not sold separately
Gross Weight 26.5 kg (58.5 lbs)
Net weight 13.5 kg (30 lbs)
Front Panel Buttons (1) PWR / (1) RST / (1) UID
LEDs (1) PWR / (2) LAN / (1) UID / (1) BMC event
I/O Ports (2) USB 3.0 ports
External Drive Bay Q ty / Type (2) 2.5 Hot-Swap SSD/HDD
HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s
Supported HDD Interface (2) SAS 12Gb/s / SATA 6Gb/s
System Cooling Configuration FAN (10) 4cm fans
Power Supply Type CRPS
Input Range AC 100-127V/12A / AC 200-240V/9.48A
Frequency 47-63 Hz
Output Watts Delta 1,600 Watts#
Efficiency 80 plus Platinum
Redundancy 1+1
Notification # Delta and Chicony are not interchangeable parts. Please use the required power supply module as indicated in the user’s manual.
Processor Q ty / Socket Type (1) AMD Socket SP3
Supported CPU Series (1) AMD EPYC™ 7001 Series Processor
Thermal Design Power (TDP) Wattage Max up to 180W
Memory Supported DIMM Qty (16) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM 2666/2400
Capacity Up to 2,048GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS
*Actual memory speed depends on memory population topology
Memory channel 8 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E Default configuration: (4) PCI-E Gen3 x16 slots (FH / 10.5 L / DW) + (1) PCI-E Gen3 x16 slot (FH / HL / SW)
Pre-installed TYAN Riser Card
(PCI-E Gen3) (1) M2091-R riser card for (1) PCI-E Gen3 x16 slot (right) / (1) M8021-R16-1L-1 # riser card for (1) PCI-E Gen3 x16 slot (right) / (2) M5631-R16-1F-1 # riser card for (2) PCI-E Gen3 x16 slots (right) / (1) M8021-R32-2L-2 # riser card for (2) PCI-E Gen3 x16 slots
Others Field Upgradable Option:
Optional Riser Cards: (1) M2091-R riser card (right) for (1) PCI-E Gen3 x16 slot , (1) M8021-R32-2L-1 riser card for (2) PCI-E Gen3 x16 slots, (1) M8021-R32-2L-2 riser card for (2) PCI-E Gen3 x16 slots, (2) M5631-R16-1F-1 riser card for (2) PCI-E Gen3 x16 slots /
Total PCI-E Slots Provided by the Field Upgradable Options:
(6) PCI-E Gen3 x16 slots (FH / 10.5 L / SW) + (1) PCI-E Gen3 x16 slot (FH / HL / SW)
Physical Dimension
Abbreviation FH/FL (Full-height / Full-length): 4.4 x 12.3 (111.2 x 312mm)
Notification # The item not sold separately
LAN Q ty / Port (2) 10GbE ports / (1) GbE dedicated for IPMI
Controller Intel X550-AT2
PHY Realtek RTL8211E
Storage SATA Connector (2) SATA / (2) SATA-DOM
Controller Direct from AMD EPYC CPU
Speed 6Gb/s
RAID N/A
NVMe Connector (M.2) (2) 22110/2280
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
I/O Ports USB (2) USB3.0 ports (@ front) / (1) USB3.0 ports (@ rear)
COM (1) 2x12 pin-header
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10GbE ports, (1) dedicated GbE for IPMI
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S0, S5 / FAN speed control automatic
Operating System OS supported list Please refer to our AVL support lists.
Regulation FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Class A
VCCI Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Package Contains Barebone (1) GA88-B8021 Barebone
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD

---
