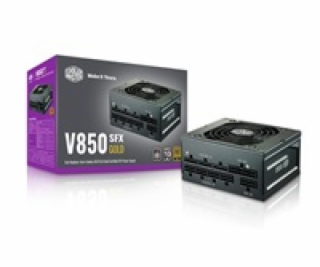

V850 SFX Gold
The V SFX Gold delivers the high quality experience you’ve come to expect from the V series in SFX form factor. Enjoy the same great features with 80 Plus Gold efficiency, full-modular cabling, an FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. But now you can have it in a mini-ITX case. With the V SFX Gold, the V series is now viable for cases ranging from mini-ITX all the way up through E-ATX systems. And with the included bracket this unit is compatible with all of them.

SFX Form Factor : This unit is compatible with all SFX cases and suitable for mini-ITX system builds.
SFX-to-ATX Bracket : The included bracket allows users to install this unit securely in traditional ATX cases.
80 PLUS Gold Certified : This certification guarantees a typical efficiency of 90% under normal operating conditions.
Quiet FDB Fan : The 92mm FDB fan delivers effective, quiet, and efficient cooling.
Full-Modular Cabling : Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
10 Year Warranty : This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.


TECHNICAL SPECIFICATIONS



ATX Version
V850 SFX Gold


ATX Version
SFX 12V Ver. 3.42


PFC
Active PFC


Input Voltage
90-264 V


Input Current
12-6A


Input frequency
47-63 Hz


Dimensions (L x W x H)
100 x 125 x 63.5 mm


Fan Size
92 mm


Fan Bearing
FDB


Efficiency
90% Typical Load


80 Plus Rating
80 PLUS Gold


ETA Rating
A


IAMBDA Rating
A


ERP 2014 Lot 3
Yes


Operating Temperature
0-50°C


Power Good Signal
100-500 ms


Hold Up Time
16ms


MTBF
>100,000 Hours


Protections
OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection


Regulatory
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB


ATX 24-pin Connectors
1 (300 mm)


EPS 4+4 pin Connectors
1 (450 mm)


EPS 8-pin Connector
1 (450 mm)


SATA Connectors
8 (400 + 120 mm)


Peripheral 4-pin Connectors
4 (100 + 115 + 115 + 115 mm)


PCI-E 6+2 pin Connectors
4 (100 + 115 + 115 + 115 mm)


Series
V Gold Series, V SFX Gold Series

---
