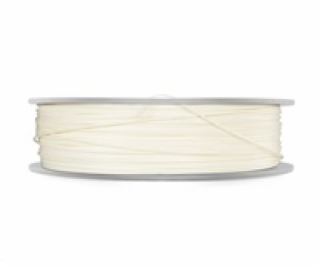

Verbatim BVOH filament 1.75 mm - Transparent
A high quality water soluble support material that can be used with a number of different polymers and easily dissolved in cold water. This environmentally-friendly material provides support for printing objects with overhangs or particularly complex structures. Verbatim BVOH follows the tightest quality controls as standard, ensuring excellent layer-forming and adhesion properties.

Features

Butenediol Vinyl Alcohol Co-polymer (BVOH) for material extrusion
Water dissolvable support material
Waste can be disposed with household effluent**
Excellent layer-forming, emulsifying, adhesive
Best in combination with ABS, PLA, and PET material
Light- and UV-sensitive
High solubility
Main applications: Support material for filaments, printing projects with overhangs or complex objects **>20 times weight of water to this material required for disposal (i.e >20cc water to 1g BVOH) with a maximum of 2kg of BVOH per day. When more BVOH is to be used per day, professional organic effluent treatment will be required.


TECHNICAL SPECIFICATIONS



Diameter accuracy
1.75 mm ± 0.07 mm


Material net weight
0.5 kg


Filament length
182 m


Melt temperature
176 °C


Melt Flow Rate @ 230 °C, 21.1N
7.5 g/(10 minutes)


Density
1.14 g/cm3


Viscat softening temperature
92 °C


Glass transition temperature
68 °C


Flexural strength
71 MPa


Flexural modulus
2900 MPa


Tensile Strength
45 MPa


Tensile Elasticity
9.0%






SPOOL DIMENSIONS



Spool diameter
200 mm


Spool depth
72 mm


Hub diameter
102 mm


Hub hole diameter
51 mm






RECOMMENDED PRINTER SET UP



Extrusion temperature
210±10 °C


Bed temperature
60 °C


Printing speed
30 mm/s

---
