Popis produktu

Sdílení napájení: ano
OCPP (Open Charge Point Protocol): ano
Stupeň ochrany (odolnost proti nárazu): IK10
Ovládání přes aplikaci: ano
Tisk pomocí App od výrobce: myWallbox-App
Bluetooth: ano
WLAN: ano
Síť (Ethernet): ne
mobilní: ne
Typ: Inteligentní nabíjecí stanice
Max. nabíjecí výkon (kW): 22
Typ zástrčky: Typ 2
Nabíjecí kabel: Pouze jednotka se zástrčkou
Barva: černá
Rozměry: 204,3 x 313 x 142,5
Hmotnost (g): 2500

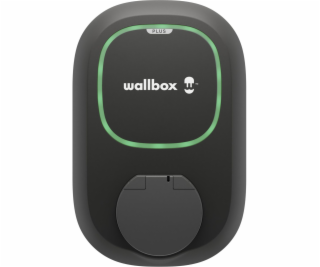

Wallbox Pulsar Plus Socket 22kW

Pulsar Plus Socket is a practical and intelligent charging system for electric vehicles and plug-in hybrids that is connected to the myWallbox app via Wi-Fi or Bluetooth.

The highlights at a glance:


Thanks to the cable lock, you can switch between socket and cable connection at any time.
Backplate design for quick and easy installation
IP55 and IK10 protection class for protection against shocks, water and dust


Pulsar Plus Socket has an integrated socket with shutter protection, a higher protection class and an easy-to-install design.

Features:


External security screws against theft
Suitable for outdoor use: Protection class IP55 / IK10
Max. Charging power: 22 kW
Connectivity: WLAN, Bluetooth
Interface: myWallbox app & portal
Included functions: Schedules, statistics, lock/unlock/auto-lock, remote charger control, automated payments, power release, charging cable lock
Charging mode: Mode 3
Plug type: Type 2 aperture
Additional feature: Residual current detection (AC 30 mA / DC 6 mA)
Cable width: up to 10 mm2
Configurable current: from 6A to rated current
Overvoltage category: CAT III
Dimensions: 20.4 x 31.3 x 14.3 cm
Weight: 2.5 kg

---
