Popis produktu

Počet 10/100 Mbit/s Portů: 24
Jumbo rámeček: 2K (max.)
PoE (Power over Ethernet): ne
Možnost montáže na stojan: ano
Montáž na zeď možná: ano
IEEE 802.1p: ano
IEEE 802.3 10-BASE-T, Ethernet: ano
IEEE 802.3az Energy Efficient Ethernet: ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
IEEE 802.3x Flow Control (Full-Duplex Flow Control): ano
Typ: Switch
Barva: černá
Šířka (mm): 267
Výška (mm): 42
Hloubka (mm): 162
Hmotnost (g): 1280

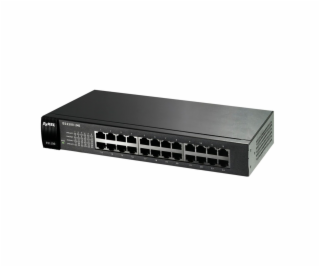

24-port FE Unmanaged Switch: Zyxel ES-1100-24E

The ZyXEL ES1100 Series consists of unmanaged Fast Ethernet switches that provide a high-performance solution for Fast Ethernet connections to the desktop. The ES1100 Series is the ideal solution for bandwidth-intensive applications such as high-resolution photo delivery, video/audio streaming and downloading, and server farm connections.

Better performance and efficiency
The entire range of ES1100 Series Fast Ethernet switches is designed to improve network performance and efficiency. The ES1100 series switches use N-way auto-negotiation to connect to network partners at the highest possible data speed and automatically activate duplex mode.

Reliability during transmission
Unlike shared 10/100 Mbps networks, the ZyXEL ES1100 Series provides dedicated bandwidth. This avoids data congestion. With duplex mode, the ES1100 Series can double the effective bandwidth by enabling bi-directional communication. The store-and-forward service ensures low latency and error-free packet delivery. The plug-and-play function and compatibility with multiple network protocols make installation and management of the ES1100 series quick and easy.

Desktop size with flexible mounting for any working environment

Thanks to the integrated rackmount brackets, the models in desktop format not only fit into desktop environments, but also easily into racks.



Features:


Total number of connections: 24
Switching capacity: 4.8 Gbit/s
Switching forwarding rate: 3.6 MPPS
Packet buffer (byte): 256 K
MAC address capacity: 8 K
Jumbo frame support: up to 2048 bytes
Flow Control: 802.3x, Back-Pressure-based, 802.1p CoS
Loop detection
Auto MDI/MDI-X
Dimensions: 325 x 227 x 71 mm
Weight: 2.1 kg

---
